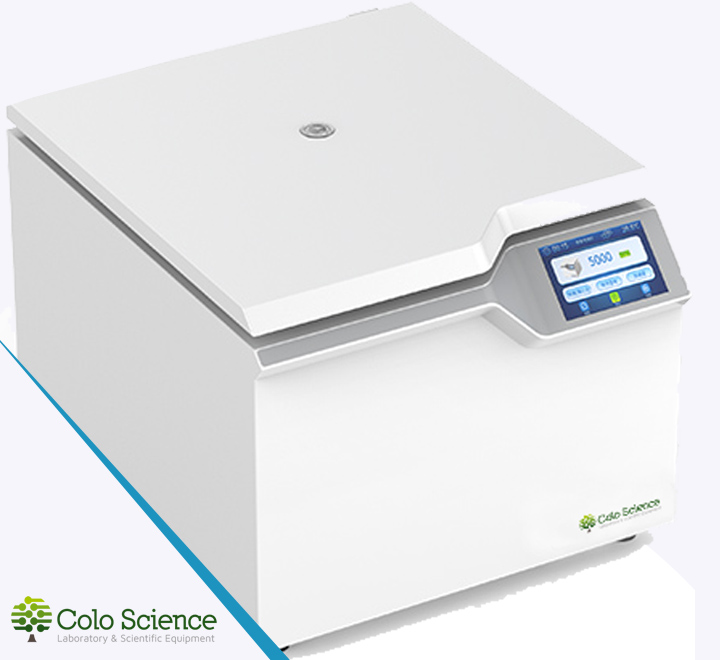

LACE-PRO — Laboratory Centrifuge (PRO5045), max. 4×500 ml, touchscreen
OVERVIEW
LACE-PRO is a high-capacity laboratory centrifuge designed for routine clinical, research and industrial workflows. With a maximum capacity of 4×500 ml, a 5” touchscreen interface and maintenance-free brushless DC motor, it supports flexible rotor configurations for tubes and microplates.
Programmable control includes 100 stored programs, 20 acceleration and 20 braking levels, safety self-test, overspeed protection and imbalance detection. The sealed design helps reduce aerosol leakage, while dual mechanical/electronic lid locks enhance operational safety.

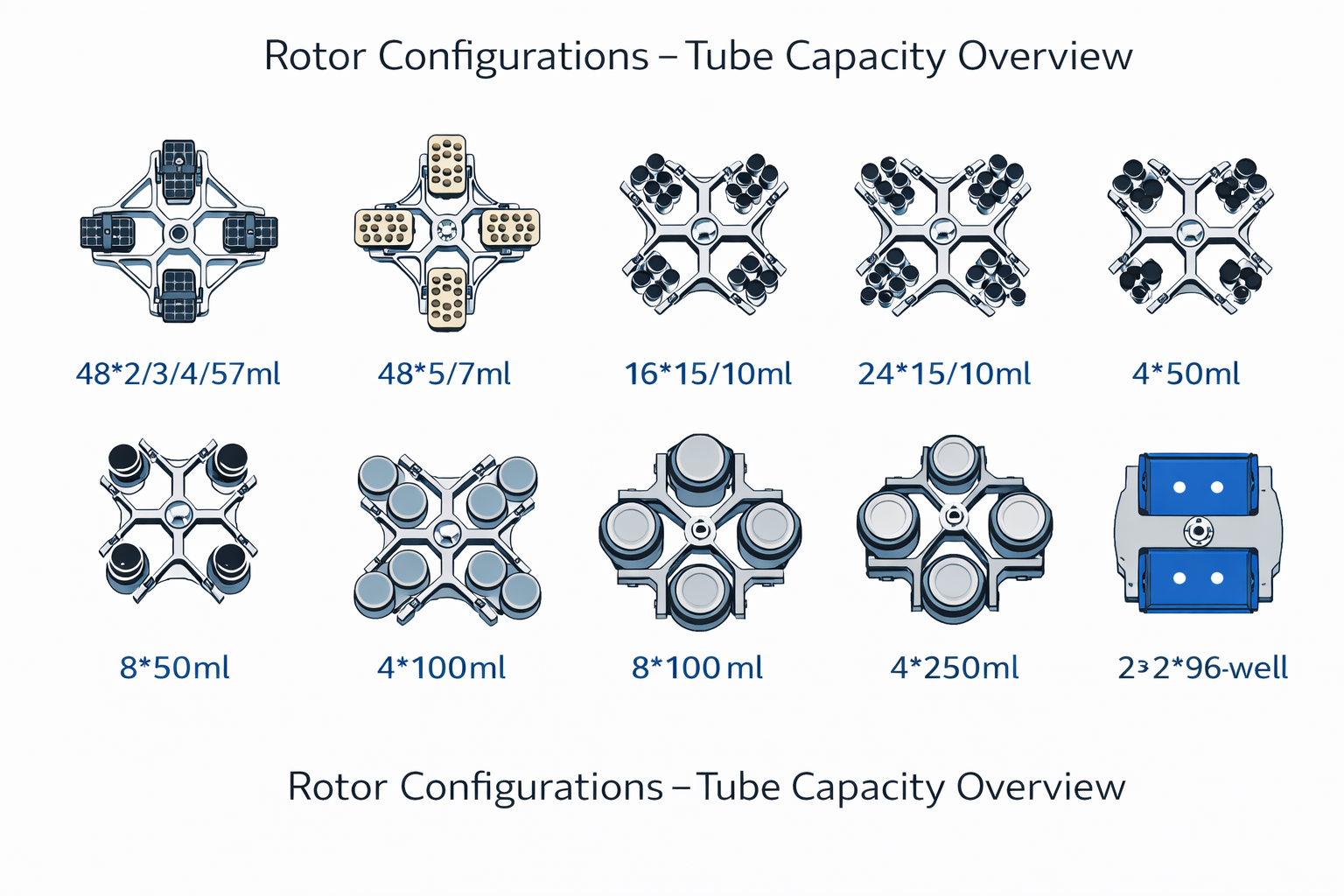

ROTOR CONFIGURATION OVERVIEW
Below is an illustrative overview of typical rotor/tube configurations supported by LACE-PRO. Exact configuration depends on the selected rotor and adapters.
Tip: use the tables below to select the correct rotor for your tube volume and throughput.
COLO.SCIENCE KNOWLEDGE
How to choose the right centrifuge rotor and adapters
Read our COLO.Science guide covering rotor types, tube balancing, RCF vs RPM and practical selection tips.
TYPICAL APPLICATIONS
- Clinical and diagnostic laboratories (blood collection tubes, routine separation)
- Pharmaceutical QC and sample preparation
- Universities and research institutes (general centrifugation workflows)
- Biotechnology and life science labs (tubes and microplates)
- Food, chemical and industrial laboratories (routine clarification and separation)
MODELS & DIMENSIONS
| Model | Product No. | External size (L×W×H) | Net weight |
|---|---|---|---|
| LACE-PRO | PRO5045 | 500 × 620 × 410 mm | 56 kg |
Power supply: AC 220 V (standard) / AC 110 V (optional). See catalog (PDF) for packaging details.
TECHNICAL SPECIFICATIONS
| Model | LACE-PRO (PRO5045) |
| Max. speed | 5000 rpm |
| Max. RCF | 3962 × g |
| Max. capacity | 4 × 500 ml |
| Speed precision | ±10 rpm |
| Time range | 1 s – 99 h 59 min / continuous / short |
| Programs / accel & brake | 100 programs; 20 accel levels; 20 brake levels |
| Motor | DC brushless motor (maintenance-free) |
| Display | 5″ touch LCD |
| Noise | ≤65 dB(A) |
| Safety | Self-test, overspeed protection, imbalance detection, dual lid lock; sealed ring to reduce aerosol leakage |
STANDARD DELIVERY & ACCESSORIES
- LACE-PRO centrifuge main unit
- Power cable
- Basic user manual / quick start
- Rotors and adapters as ordered (multiple configurations available)
- Optional: rotor auto-recognition (as per configuration)
Exact delivery scope depends on the selected rotor(s) and accessories. See catalog (PDF) and order confirmation.
FEATURED ROTOR (HIGHLIGHT)
For high-throughput sample processing, LACE-PRO supports a 4 × 500 ml swing-out configuration
(flat-bottom or biosafety buckets), ideal for large-volume workflows.
| Code | Bucket / Capacity | Max speed | Max RCF | Compatible tubes (examples) |
|---|---|---|---|---|
| PRO5606 | 4 × 500 ml (flat bottom) | 4000 rpm | 3130 × g | 48×2/3/4/5/7 ml blood collection tubes; 64×2/3/4/5/7 ml blood collection tubes; 36×10 ml (●), 36×10 ml (▲), 36×15 ml (●), 36×15 ml (▲), 12×50 ml (●), 12×50 ml (▲), 16×50 ml (●), 16×50 ml (▲), 48×15 ml (▲), 4×250 ml, 32×15 ml (▲), 48×10 ml (●) |
| PRO | 4 × 500 ml (biosafety) | 4000 rpm | 3399 × g | Same tube compatibility set as above (depending on selected inserts/adapters). |
Notes: (●) round-bottom tube, (▲) sharp-bottom tube. Full rotor & adapter matrix is listed in the Technical Specifications section.
Disclaimer: Product specifications, rotor configurations and tube compatibility may vary depending on the selected configuration and manufacturer updates. Images and illustrations are for reference purposes only. For exact technical data, compliance requirements and ordering details, please refer to the official LACE-PRO catalog (PDF) or contact our technical support.
