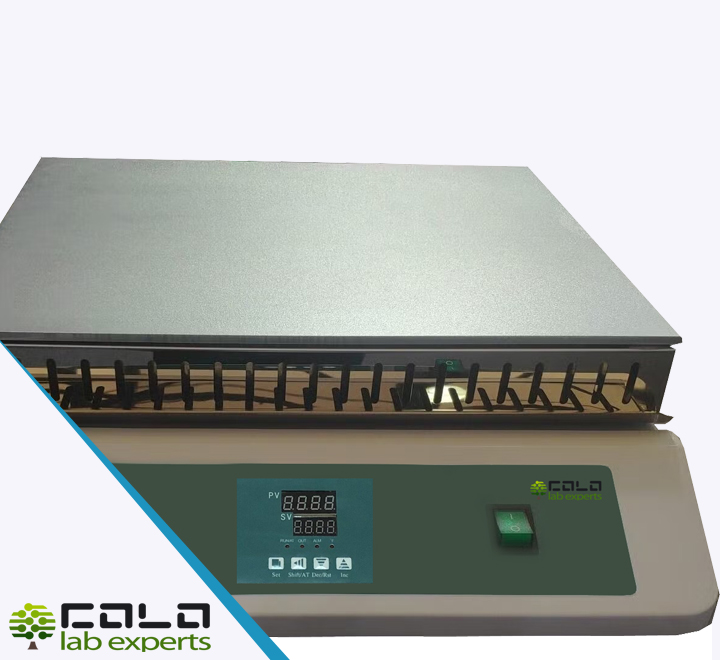

GOBI9D — Laboratory Hotplate, Aluminium Surface, Digital Control 40×60 cm
OVERVIEW
The GOBI series is COLO aluminium-surface laboratory hotplate line designed for precise, uniform heating of media, glassware and reaction vessels.
High heating power, intelligent PID temperature control and a chemically resistant special coating make these hotplates a robust choice for demanding sample preparation workflows.
The GOBI9D model is the largest digital hotplate in the series, featuring a 400×600 mm aluminium surface, up to 350 °C working temperature and a maximum load of 40 kg.
The digital microprocessor PID controller provides stable temperature control, with integrated self-diagnostics, error indication and a timing function with time delay.
Short heating times, excellent plate temperature uniformity and a clear LED display for setting and reading parameters help ensure reproducible results in routine and advanced laboratory applications.
COLO.SCIENCE KNOWLEDGE
Safe and efficient use of laboratory hotplates
Learn how to integrate hotplates into sample preparation workflows – from evaporation and digestion to reagent preparation, including practical tips on vessel selection, heat distribution and safety.
TYPICAL APPLICATIONS
- Digestion and evaporation of samples in beakers, flasks and metal vessels
- Heating of reaction mixtures, buffers and media in larger containers
- Gentle evaporation of solvents in sample preparation workflows
- Reagent preparation and temperature conditioning of solutions
- Drying of glassware, sample containers and accessories
- Parallel heating of multiple samples on a single large plate
- General laboratory heating tasks requiring stable, uniform plate temperature
MODELS & DIMENSIONS – GOBI / THAR SERIES
| Model | Controller type | Plate material | Plate size (mm) | Max. temp. | Heating power | External size (cm) | Max. load |
|---|---|---|---|---|---|---|---|
| GOBI5A | Analogue | Aluminium | 300×300 | 320 °C | 1200 W | 34×37×22 | 20 kg |
| GOBI8A | Analogue | Aluminium | 300×450 | 320 °C | 1800 W | 42×50×22 | 30 kg |
| GOBI9A | Analogue | Aluminium | 400×600 | 320 °C | 3000 W | 47×65×22 | 40 kg |
| GOBI5D | Digital PID | Aluminium | 300×300 | 350 °C | 1200 W | 34×37×22 | 20 kg |
| GOBI8D | Digital PID | Aluminium | 300×450 | 350 °C | 1800 W | 42×50×22 | 30 kg |
| GOBI9D (this model) | Digital PID | Aluminium | 400×600 | 350 °C | 3000 W | 47×65×22 | 40 kg |
| THAR5D | Digital PID | Graphite | 300×300 | 450 °C | 1200 W | 34×37×22 | 20 kg |
| THAR8D | Digital PID | Graphite | 300×450 | 450 °C | 1800 W | 42×50×22 | 30 kg |
| THAR9D | Digital PID | Graphite | 400×600 | 450 °C | 3000 W | 47×65×22 | 40 kg |
All models operate on 220/230 V, 50–60 Hz.
TECHNICAL SPECIFICATIONS – GOBI9D
| Model | GOBI9D – Laboratory Hotplate Aluminium Surface |
| Controller type | Digital microprocessor PID controller with auto diagnostic and error indication |
| Temperature range | RT + 5 °C to 350 °C |
| Maximum temperature | 350 °C |
| Heating surface | Special coating aluminium surface, chemical resistant |
| Plate dimensions | 400 × 600 mm |
| Heating power | 3000 W |
| Temperature sensor | K-type, class A |
| Temperature accuracy / plate uniformity | Accuracy ±10%, plate temperature uniformity ±15% |
| External dimensions (W×D×H) | 470 × 650 × 220 mm |
| Maximum plate load | 40 kg |
| Timer | Digital timer with time delay function |
| User interface | LED display for parameter setting and reading; separate On/Off button for heating |
| Safety & indication | Heat indicator, PID over-temperature protection, chemical resistant coating |
| Power supply | 220/230 V AC, 50–60 Hz |
For full details and tolerances, please refer to the official catalog (PDF).
STANDARD DELIVERY & ACCESSORIES
- GOBI9D laboratory hotplate with aluminium surface
- Power cable (EU plug)
- Basic user manual / operating instructions
- Integrated digital controller and indicator set
- Optional: support rod and clamp set for holding vessels or thermometers*
- Optional: external temperature probe and protective shields for specific applications*
*Options and accessories according to current COLO.Science offer and order confirmation.
