ALEMADR-TSHL — Thermo Shaker with Heating Lid (Dual Block, High Capacity)
Dual-block high-capacity thermostatic shaker with independent heating lid control and brushless DC motor. Features two independent heating blocks for maximum sample throughput, PID temperature regulation, and speeds up to 2000 rpm.
Product Overview

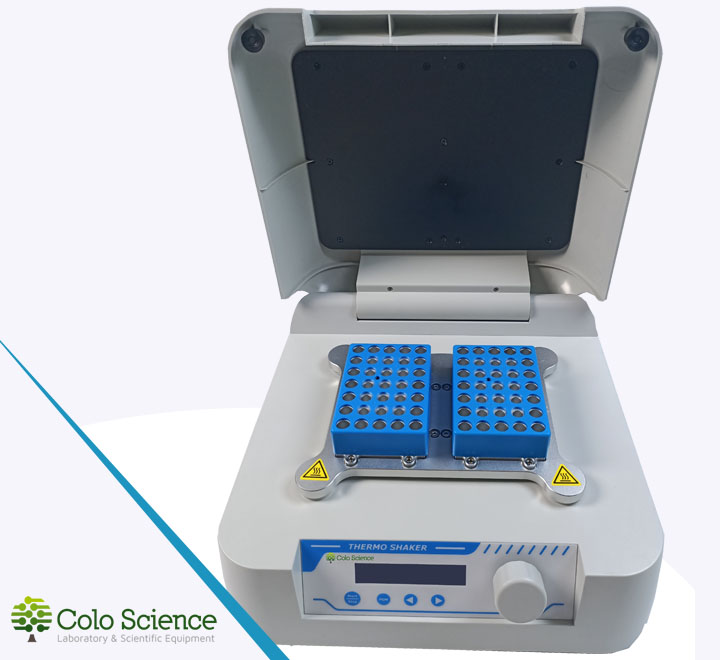

The ALEMADR-TSHL Thermo Shaker is a multipurpose thermostatic shaker controlled by a brushless DC motor. It utilizes PID intelligent temperature control to ensure high accuracy, automatically optimizes heating rates, and reduces waiting time. The dual-block design provides twice the capacity of standard models, while independent heating-lid control prevents evaporation and cross-contamination, improving temperature uniformity across all tubes.
Key Features
High Capacity
Independent Heating Lid
PID Temperature Control
200-2000 RPM
Brushless DC Motor
Auto Resume Function
Dual Block Calibration
2×
Dual Block Advantage: Double the Capacity
Simultaneous Processing
Run two different protocols or double your sample throughput with two independent heating blocks.
Flexible Configuration
Use identical blocks for high-throughput work or different blocks for varied sample formats.
Cost Efficiency
One instrument replaces two single-block shakers, saving bench space and investment.
Precision & Control
- PID intelligent temperature control
- Temperature accuracy: ≤±0.2°C @ 37°C
- Display resolution: 0.1°C
- Temperature uniformity: ≤±0.2°C @ 37°C
- Dual-block independent calibration
Dual Block Design
- 2 independent heating blocks
- Each block individually controllable
- Compatible with all standard blocks
- Simultaneous or sequential operation
- Double capacity for high-throughput labs
Applications
- High-throughput PCR preparation
- Large-scale enzymatic reactions
- Dual-protocol sample incubation
- Simultaneous different temperature protocols
- Production-scale sample processing
Technical Specifications
| Parameter | Specification |
|---|---|
| Temp. setting range | 0°C to 100°C |
| Temp. control range | RT+5°C to 100°C |
| Timing range | 1 min to 99 h 59 min / ∞ |
| Temp. accuracy | ≤ ±0.2°C @ 37°C |
| Display accuracy | 0.1°C |
| Temp. uniformity | ≤ ±0.2°C @ 37°C |
| Heating lid temp. range | Auto / 0 to +15°C |
| Heating lid control mode | Automatic / Manual |
| Shaking speed | 200 to 2000 rpm |
| Orbit | 2 mm |
| Heating time | ≤ 15 min (25°C to 100°C) |
| Multi points running | Yes (max 5 points) |
| Multi cycle | Yes (max 99 times) |
| Auto constant temp. at end | Yes |
| Auto preheating | Yes |
| Auto running | Yes |
| Auto resume to run | Yes |
| Block quantity | 2 |
| Power supply | 450 W |
| Voltage | AC220V or AC110V, 50/60Hz |
| Fuse | 250V 3A Φ5×20 |
| Dimensions (mm) | 296×212×164 |
| Weight | 6.9 kg |
Optional Blocks (Per Block)
| Block Type | Capacity (Per Block) | Max Speed | Total Capacity (Dual Block) |
|---|---|---|---|
| PRO4484 | 96 × 0.2 ml PCR Plate | 2000 rpm | 192 × 0.2 ml |
| PRO4483 | 54 × 0.5 ml centrifuge tubes | 2000 rpm | 108 × 0.5 ml |
| PRO4307 | 35 × 1.5 ml centrifuge tubes | 2000 rpm | 70 × 1.5 ml |
| PRO4485 | 35 × 2.0 ml centrifuge tubes | 2000 rpm | 70 × 2.0 ml |
| PRO4486 | 15 × 0.5 ml + 20 × 1.5 ml tubes | 2000 rpm | 30 × 0.5 ml + 40 × 1.5 ml |
Need help selecting blocks?
Additional/custom blocks may be available on request via the COLO.Science team. Contact us for help selecting the correct block type, tube format, or protocol parameters for your specific application.
Double Your Throughput with Dual-Block Design
The ALEMADR-TSHL’s dual-block configuration delivers twice the capacity of standard thermo shakers, making it ideal for high-throughput laboratories and production-scale applications.
