COLO.SCIENCE — COMPACT REFRIGERATED MICROCENTRIFUGATION
Refrigerated microcentrifuge with temperature control, rotor ID and biocontainment rotor lid
The LACE-LION platform is designed for laboratories that need a compact refrigerated microcentrifuge for routine small-volume workflows. It is suitable for medical, clinical, biochemistry and molecular laboratories where sample temperature, speed, RCF, rotor recognition and safe routine handling are important.
The included 24 × 1.5 / 2 ml angle rotor with click-seal biocontainment lid technology supports standard microtube work, while the supplied PCR row tube set extends the standard configuration for common molecular workflows.
Key characteristics
- LACE-LION refrigerated microcentrifuge for clinical, medical and molecular workflows.
- Maximum speed 15,100 rpm and maximum RCF 21,400 × g.
- Temperature control range -20 °C to 40 °C in 1 °C increments.
- Cooling time ≤ 9 minutes from room temperature to set temperature.
- Standard 24 × 1.5 / 2 ml angle rotor with click-seal biocontainment lid technology.
- LCD touch screen / soft touch control with speed, time, rotor number and RCF display.
- Automatic rotor recognition and disbalance protection.
- IVD compliant, CE marked, certified biocontainment and CSA listed.
Suitable for
- Clinical and medical laboratory centrifugation.
- Biochemistry laboratories and temperature-sensitive samples.
- Molecular biology and PCR-related sample preparation.
- Routine microtube centrifugation with refrigerated control.
- Small-volume tube workflows using 1.5 / 2 ml tubes.
- Laboratories requiring rotor ID, disbalance protection and repeatable methods.
SELECTION NOTE — LACE-LION REFRIGERATED MICROCENTRIFUGE
LACE-LION refrigerated microcentrifuge for controlled small-volume sample preparation
LACE-LION refrigerated microcentrifuge is positioned for laboratories that need a compact refrigerated unit for small-volume sample preparation. The most important selection parameters are maximum RCF, tube format, temperature control range, rotor lid design, biocontainment requirement, program memory and the ability to display chamber temperature during operation.
When selecting LACE-LION refrigerated microcentrifuge, the standard rotor should be checked against the exact tube format, cap design, sample volume and required RCF. The included 24 × 1.5 / 2 ml rotor covers common microtube workflows, while adapter and optional rotor selection should be confirmed according to the ordered application.
For clinical, medical, biochemistry and molecular laboratories, LACE-LION refrigerated microcentrifuge provides a practical combination of refrigeration, compact size, LCD soft touch operation, rotor ID, disbalance protection and biocontainment-oriented rotor lid technology.
APPLICATION FIT — REFRIGERATED MICROCENTRIFUGE
LACE-LION refrigerated microcentrifuge for repeatable clinical and molecular routines
LACE-LION refrigerated microcentrifuge supports daily workflows where sample temperature, speed, RCF and rotor configuration must be controlled consistently. The unit is especially useful when a laboratory needs high-speed refrigerated microcentrifugation without moving to a larger general-purpose centrifuge platform.
For users comparing a compact refrigerated microcentrifuge, LACE-LION refrigerated microcentrifuge offers 15,100 rpm, 21,400 × g, -20 °C to 40 °C temperature control, LCD soft touch operation, rotor ID recognition and certified biocontainment support in one bench-friendly instrument.
For clinical laboratories
LACE-LION refrigerated microcentrifuge helps support controlled routine separation where IVD compliance, safety lid locking and repeatable methods are important.
For molecular workflows
LACE-LION refrigerated microcentrifuge includes a 24 × 1.5 / 2 ml rotor and PCR row tube set for common small-volume preparation routines.
LACE-LION microcentrifuge, included rotor and LCD control
LACE-LION main unit with compact refrigerated benchtop structure, LCD soft touch control and high-speed microcentrifuge performance.

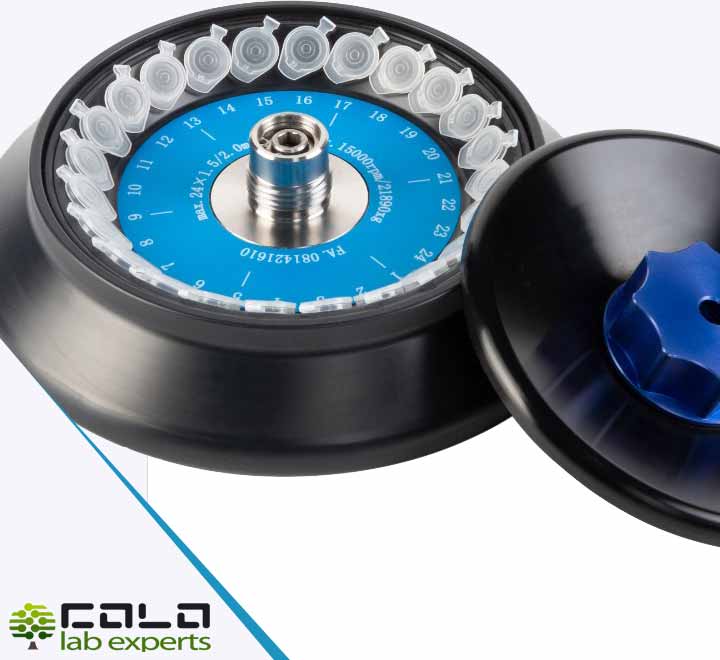

Included 24 × 1.5 / 2 ml angle rotor with click-seal biocontainment lid technology for routine microtube workflows.
LCD soft touch interface displays speed, RCF, time, temperature and program values for repeatable operation.
TECHNICAL SPECIFICATIONS — LACE-LION REFRIGERATED MICROCENTRIFUGE
| Product | LACE-LION refrigerated microcentrifuge |
| Product type | Compact refrigerated microcentrifuge |
| Maximum speed / RCF | 15,100 rpm / 21,400 × g |
| Speed range | 100–15,100 rpm |
| Speed setting step | 10 rpm |
| Standard rotor included | 24 × 1.5 / 2 ml angle rotor with click-seal biocontainment lid technology |
| PCR row tubes | Set includes 4 × PCR row tubes, 0.2 ml |
| Temperature control range | -20 °C to 40 °C, 1 °C increments |
| Cooling time | ≤ 9 min from room temperature to set temperature |
| Chamber temperature display | Yes; measured and displayed to help prevent overheating of samples |
| Inner chamber | Stainless steel |
| Timer | 1 sec to 9 h 59 min; continuous operation; short spin button |
| Programs | 6 programs can be memorized; more according to customer request |
| Acceleration / deceleration | 10 programmable acceleration ramps and 10 programmable deceleration ramps |
| RPM / RCF conversion | Yes |
| Display | LCD touch screen / soft touch screen |
| Displayed values | Rotation speed, time, rotor number and RCF |
| During-run adjustment | Speed / RCF, time and parameters can be set during operation |
| Rotor ID / imbalance safety | Automatic rotor recognition and disbalance protection |
| Lid lock | Mechatronic motor door lock; simple lid lock with one button |
| End process alarm | Sound alarm at the end of process |
| Paint coating | Microbiological paint coating protection |
| Standards | IEC 61010-1, IEC 61010-2, IEC 61010-020 |
| Certifications | CE marked, certified biocontainment, IVD compliant, CSA |
| Ambient temperature | 0–40 °C |
| Noise | ≤ 50 dB(A) |
| Power supply / power | AC 220 V / 50 Hz; 360 W |
| Dimensions | 27 × 48 × 25 cm |
| Weight N.W. / G.W. | 21 / 36 kg |
Final performance depends on tube format, tube manufacturer limits, correct balancing, selected program, sample volume, temperature setpoint, rotor / adapter configuration and laboratory SOP. Final delivery scope, accessories, certificates and documentation package should be confirmed in the official quotation.
ROTOR CONFIGURATION AND ORDERING SUPPORT
Included 24 × 1.5 / 2 ml rotor with biocontainment lid technology
LACE-LION is supplied with a standard 24 × 1.5 / 2 ml angle rotor with click-seal biocontainment lid technology. The supplied configuration also includes 4 × PCR row tubes, 0.2 ml. With suitable adapters, the rotor type may support additional formats from 2 ml to 15 ml according to the supplied note; final adapter and tube compatibility must be confirmed for the ordered application.
Included configuration
24 × 1.5 / 2 ml angle rotor
Click-seal biocontainment lid technology for routine microtube workflows.
0.2 ml
Included tube set
4 × PCR row tubes
Supplied PCR row tube set for common molecular preparation workflows.
6 rotors
Optional range
Optional rotors to confirm
The source notes up to 6 optional rotors. Final rotor matrix should be confirmed by application before quotation.
Ordering note: final quotation should confirm centrifuge unit, standard rotor, tube format, adapter requirements, target speed / RCF, temperature requirement, biocontainment need, electrical configuration and documentation package.
Control, cooling and safety functions
Refrigerated chamber control
Temperature control from -20 °C to 40 °C and chamber temperature display support controlled handling of temperature-sensitive samples.
LCD soft touch operation
LCD touch screen and soft touch keyboard support clear setting of speed, RCF, time, temperature and rotor-related parameters.
Rotor ID and disbalance protection
Automatic rotor recognition and disbalance protection support safer routine operation and help reduce configuration mistakes.
Programmable ramps
10 acceleration ramps and 10 deceleration ramps help adapt the run profile to routine or more sensitive sample handling.
LABORATORY CENTRIFUGES CATALOGUE
Compare refrigerated microcentrifuges, clinical centrifuges and rotor configurations
Use the laboratory centrifuges catalogue to compare centrifuge platforms, rotor capacities, tube formats, refrigeration status, speed ranges, RCF values and application fit.
COLO.SCIENCE KNOWLEDGE AND SUPPORT
Selection support for refrigerated microcentrifugation workflows
COLO.Science supports centrifuge selection by matching tube format, sample volume, required speed / RCF, temperature profile, biocontainment need, rotor configuration, balancing requirements and documentation expectations.
Applications and operational value
Clinical laboratories
LACE-LION supports controlled refrigerated microcentrifugation where IVD compliance, lid locking and repeatability are important for routine workflows.
Biochemistry laboratories
The refrigerated chamber, temperature display and compact rotor configuration are suitable for selected temperature-sensitive biochemistry workflows.
Molecular workflows
The included 24 × 1.5 / 2 ml rotor and PCR row tube set support common small-volume molecular preparation routines.
Repeatable laboratory methods
Program memory, RPM / RCF conversion, short spin and programmable ramps help maintain consistent method handling across daily users.
How to select the appropriate LACE-LION configuration
Selection should start with the tube format and the required centrifugal force. Confirm the nominal tube volume, cap type, tube manufacturer limits, sample volume, target RCF, temperature requirement and biocontainment expectation. After that, confirm whether the included 24 × 1.5 / 2 ml rotor is sufficient or whether adapters / optional rotors are required.
For temperature-sensitive samples, define the set temperature, pre-cooling requirement, acceptable run time and maximum permitted sample warming. For routine laboratory workflows, also define program memory needs, acceleration / deceleration behavior, short-spin use, balancing routine, documentation requirements and user training expectations.
Compact refrigerated microcentrifuge for controlled laboratory routines
LACE-LION refrigerated microcentrifuge is suitable for laboratories that need high-speed small-volume centrifugation with controlled temperature, compact footprint and safety-oriented rotor handling. The combination of 15,100 rpm, 21,400 × g, -20 °C to 40 °C temperature range, chamber temperature display, rotor ID and disbalance protection makes it practical for repeatable daily work.
The standard 24 × 1.5 / 2 ml rotor with click-seal biocontainment lid technology supports common microtube applications, while PCR row tubes and potential adapters extend configuration flexibility. Final rotor and adapter selection should always be aligned with tube type, sample volume, target RCF, temperature profile, biocontainment need and laboratory SOP.
Configuration notice
LACE-LION may be supplied with different adapter, optional rotor, electrical and documentation configurations depending on the application. The official quotation defines the final delivery scope, including centrifuge unit, standard rotor, adapters, optional rotor configuration, electrical configuration, certificates and documentation requirements. Website content is intended for general product presentation and may not represent the exact delivered configuration. Specifications may change without notice.
