COLO ORSHA10 — High-Speed Microplate Shaker
OVERVIEW
Microplate shakers are essential tools in modern laboratories for homogenising liquids in ELISA plates, deep-well plates and cell culture plates. Reliable, uniform shaking across all wells is critical for accurate assay performance, reproducible incubation conditions and efficient sample processing in diagnostics, research and screening workflows.

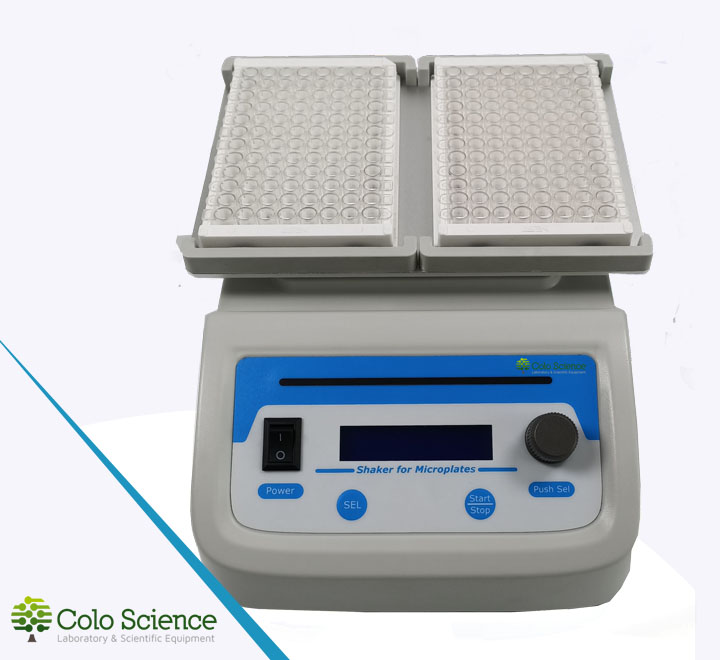

COLO ORSHA10 is a compact, high-speed microplate shaker driven by a brushless DC motor and controlled by a microprocessor. It accommodates up to two standard microplates (96/384 wells), deep-well plates or 24/48/96-well cell culture plates and delivers controlled orbital shaking from 200 to 2000 rpm with a 2 mm orbit. A clear LCD display, integrated status indicator light and automatic fault detection with buzzer alarm make ORSHA10 a robust and user-friendly solution for ELISA, screening and general microplate mixing.
COLO.SCIENCE KNOWLEDGE
How to choose and use microplate shakers in ELISA and cell culture
Read our COLO.Science article on microplate shaking principles, speed selection, orbit, and good practice in ELISA, screening and incubator applications.
TYPICAL APPLICATIONS
- Mixing of samples in ELISA and other immunoassay plates (96/384 wells)
- Gentle shaking of 24/48/96-well cell culture plates in incubators or on the bench
- Homogenisation in deep-well plates for nucleic acid extraction and sample preparation
- Enzymatic reactions and kinetic assays requiring controlled orbital shaking
- Screening workflows in research and drug development laboratories
- Routine diagnostics, QC laboratories and academic teaching labs
MODELS & DIMENSIONS
| Model | Capacity | Speed / orbit | Dimensions / weight |
|---|---|---|---|
| COLO ORSHA10 | 2 × standard microplates (ELISA 96/384 wells, deep-well, 24/48/96-well plates) | 200–2000 rpm, 2 mm orbital | 294 × 200 × 107 mm / 3.8 kg |
TECHNICAL SPECIFICATIONS
| Model | COLO ORSHA10 Microplate Shaker |
| Time range | 1 min – 99 h 59 min |
| Shaking speed | 200 – 2000 rpm |
| Orbit | 2 mm orbital motion |
| Speed step value | 10 rpm increments |
| Capacity | 2 pcs standard microplates (96/384 wells), deep-well plates, 24/48/96-well cell culture plates |
| Motor type | Brushless DC motor, low noise, maintenance-free |
| Display & status | LCD display of speed, time and operating status; built-in status indicator light |
| Control & safety | Microprocessor-controlled speed and time, automatic fault detection, buzzer alarm |
| Plate fixing system | Special quick-fixing mechanism, tool-free installation and removal of plates |
| Power | 45 W |
| Power supply | DC 24 V / 2 A |
| Dimensions (W × D × H) | 294 × 200 × 107 mm |
| Weight | 3.8 kg |
STANDARD DELIVERY & ACCESSORIES
- COLO ORSHA10 high-speed microplate shaker
- DC 24 V power adapter / power cable
- Quick start guide / basic user manual
- Standard plate fixing system for 2 microplates
- Non-slip mat or plate adapter (where applicable)
- Optional: accessories for specific deep-well or cell culture plate formats*
- Optional: incubator-compatible platforms for combined incubation & shaking*
*Exact contents and available accessories as per current catalog and order confirmation.
MAIN TECHNICAL PARAMETERS
| Model | COLO ORSHA10 |
| Application type | Microplate shaker for ELISA, deep-well and cell culture plates |
| Plate capacity | 2 pcs standard plates (96/384-well ELISA, deep-well, 24/48/96-well cell culture) |
| Time range | 1–99 minutes or 1–99 h 59 min (programmable timer) |
| Speed range | 200–2000 rpm |
| Speed resolution | 10 rpm step setting |
| Orbit | 2 mm orbital shaking |
| Motor | Brushless DC motor, low noise, maintenance-free |
| Control & display | Microprocessor control, LCD display for speed, time and status |
| Status indication | Built-in status indicator light |
| Alarms & safety | Automatic fault detection and buzzer alarm |
| Plate fixation | Special quick-fixing system, tool-free loading and unloading |
| Power consumption | 45 W |
| Power supply | DC 24 V / 2 A |
| Dimensions (W × D × H) | 294 × 200 × 107 mm |
| Weight | Approx. 3.8 kg |
