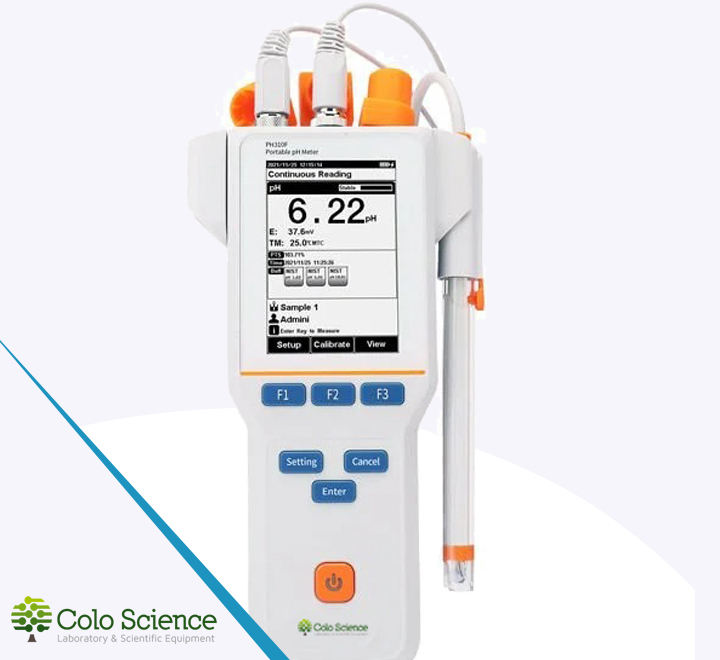

VIKING-PH310F Portable pH/mV Meter
COLO.SCIENCE KNOWLEDGE
pH and mV in water quality and process control
Explore COLO.Science articles on electrochemistry, pH theory, calibration buffers and electrode care.
See real-world examples of drinking water, wastewater and environmental monitoring, and learn how to
design robust pH/mV methods that make the most of instruments such as the VIKING-PH310F portable meter.
TYPICAL APPLICATIONS
- Water quality and environmental monitoring, both in the laboratory and in the field.
- Control of drinking water, wastewater and industrial effluents.
- Food & beverage QA/QC, fermentation process checks and basic agricultural testing.
- Electrochemistry teaching in universities, colleges and training laboratories.
- Sampling in industrial processes and on-site troubleshooting measurements.
MODEL & PARAMETERS
| Model | Measured parameters | Display & operation |
|---|---|---|
| VIKING-PH310F | Measures pH, mV and temperature. Supports 1–5 point calibration with automatic standard recognition and selectable buffer groups (NIST, DIN, GB, USA). Automatic electrode diagnostics display pH slope and offset, helping the user decide when cleaning, reconditioning or replacement is required. |
Equipped with a 3.5″ backlit LCD and intuitive menu structure. Offers Auto-Read (Fast/Medium/Slow), Timed-Read and Continuous-Read modes with Auto-Hold endpoint detection. IP65 protection, 500 data sets per parameter with GLP-ready logging, USB output and configurable auto power-off make the VIKING-PH310F a compact, reliable pH/mV meter for routine and field applications. |
TECHNICAL SPECIFICATIONS (EXCERPT)
Measurement ranges & performance
| pH | Range: −2.00 to 20.00 pH; Resolution: 0.1 / 0.01 pH; Accuracy: ±0.01 pH. Up to 5-point calibration with automatic recognition of standard buffers. Buffer groups: NIST, DIN, GB, USA; custom buffers are supported. |
| mV | Range: −2000.0 to 2000.0 mV; Resolution: 0.1 mV; Accuracy: ±0.3 mV or ±0.1% FS. Suitable for ORP and basic redox measurements. |
| Temperature | Range: −5 to 110 °C (23 to 230 °F); Units: °C, °F; Resolution: 0.1; Accuracy: ±0.2 °C. Temperature compensation can be set to ATC or MTC. |
| Measurement modes | Auto-Read (Fast/Medium/Slow), Timed and Continuous. Status prompts: Reading, Stable, Locked. Auto-Hold detects a stable endpoint and locks the displayed value. |
| Data & GLP | 500 results per parameter with GLP features. Each stored data set includes date and time, supporting traceability in regulated and audited environments. |
| Inputs & outputs | pH electrode: BNC (Q9); temperature probe: 4-pin aviation connector. USB output for PC or printer simplifies data transfer and reporting. |
| Display & power | 3.5″ LCD with backlight. Auto shutdown options: 300/600/1200/1800/3600 s or off. Powered by a rechargeable Li battery and AC adapter (100–240 V AC in, 5 V DC out). |
| Protection & dimensions | IP65 rating; dimensions: 80 × 255 × 35 mm; weight: 400 g (0.88 lb). Compact and robust for everyday laboratory work and outdoor field measurements. |
For the complete specification table, see the
VIKING-PH310F datasheet (PDF)
.
STANDARD DELIVERY
- PRO4153 3-in-1 pH composite electrode.
- NIST pH standard solutions (4.01, 7.00, 10.01; 50 mL per vial).
- Electrode holder.
- Silicone rubber protective case and wristbands.
- Carrying case.
Exact kit contents may vary by configuration and region. All essential items required to start pH and mV
measurements with the VIKING-PH310F portable meter are included.
