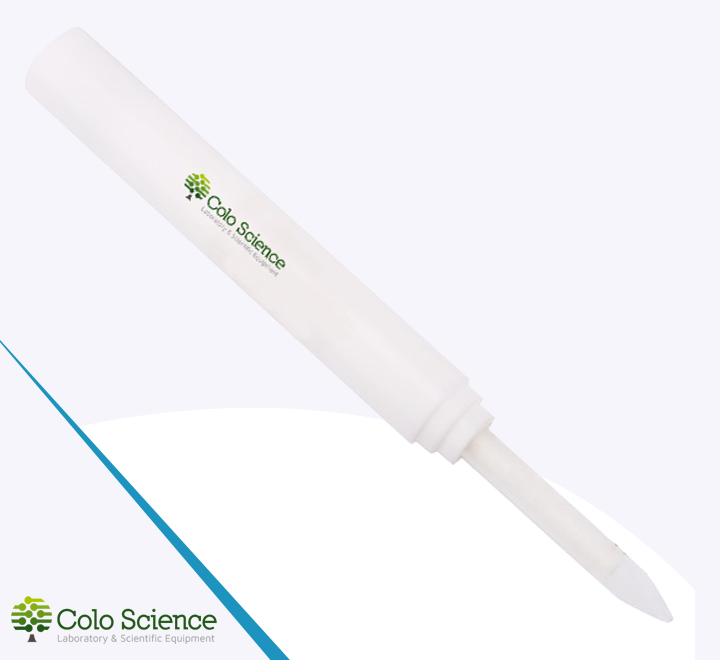

pH Composite Electrode (Blade spear) Ag/AgCl (BNC(Q9)) 0–14 pH for pH Meter
Blade spear Composite pH Electrode
OVERVIEW
This pH composite electrode (Blade spear) combines the pH indicator electrode and reference electrode into one practical body. Unlike a basic pH indicator electrode which requires a separate reference electrode, this composite design simplifies installation and reduces cable clutter for routine pH measurement workflows.
With a pH range of 0–14, Ag/AgCl reference system, unfillable design and POM (polyformaldehyde) sensor material, this electrode is a practical option for laboratories that need a robust and easy-to-use pH sensor. The BNC(Q9) connector must be matched with a compatible pH meter.
pH composite electrode for routine laboratory work combining pH sensing and reference system in one compact assembly. Features 0–14 pH range, Ag/AgCl reference, unfillable design, POM body and BNC(Q9) connection for compatible meters.COLO.Science · Practical and robust equipment for everyday laboratory workflows.
COLO.SCIENCE KNOWLEDGE
Practical notes for pH measurement and electrode handling
Explore practical guidance on pH electrodes, calibration routines, temperature compensation and everyday electrochemistry workflows for laboratory use.
Product Overview
This pH composite electrode is intended for users who want a practical all-in-one electrode configuration. Unlike a basic pH indicator electrode, which requires a separate reference electrode, this model combines both sensing components into one assembly. The blade spear design offers a robust geometry suitable for various laboratory applications.
Compatibility notice — connector and meter matching are essential
The connector must be compatible with the meter you are using. General connector options mentioned for this electrode family include S7 [S7-BNC(Q9) cable] and BNC(Q9). This model is specified with BNC(Q9) connection. Please confirm compatibility with your meter before ordering.
Key Features
pH Indicator + Reference
pH Range 0–14
Ag/AgCl Reference
Unfillable
POM Body
Single POM Junction
5–60 °C
BNC(Q9)
Blade Spear Design
Electrode
Practical design for everyday pH workflows
Composite Design
Combines the pH indicator electrode and reference electrode into one compact sensor body. No separate reference electrode needed.
Robust Construction
POM (polyformaldehyde) sensor material and single POM junction provide durability for routine laboratory use.
Routine Laboratory Compatibility
Suitable for routine electrochemistry work where a robust body, practical dimensions and standard BNC(Q9) connector are important.
Electrode Structure
- pH composite electrode (Blade spear)
- Combines pH indicator electrode and reference electrode
- No separate reference electrode needed
- Compact design for practical routine use
Materials & Reference System
- Sensor material: POM (Polyformaldehyde)
- Reference type: Ag/AgCl
- Junction material: Single polyformaldehyde (POM)
- Fill solution: Unfillable
Operating Conditions & Connection
- pH range: 0–14
- Working temperature: 5–60 °C
- Dimensions: Φ12×36 mm + Φ20×132 mm (two-part construction)
- Connector type: BNC(Q9)
Technical Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Model | PRO4153 | Name | pH composite electrode (Blade spear) |
| pH Range | 0–14 | Fill Solution | unfillable |
| Sensor material | POM | Working Temp. | 5~60 ℃ |
| Junction material | Single polyformaldehyde (POM) | Reference Type | Ag/AgCl |
| Dimension | Φ12×36 mm + Φ20×132 mm | Connector Type | BNC(Q9) |
Note: Please verify connector and meter compatibility before purchase. Exact supplied configuration may vary depending on quotation and application.
General Electrode Notes
- pH electrodes are available as pH indicator electrode, composite electrode and 3 in 1 pH composite electrode (with temperature probe).
- A pH indicator electrode needs to cooperate with a separate reference electrode.
- A composite electrode combines the pH indicator electrode and reference electrode.
- A 3 in 1 pH composite electrode combines the pH indicator electrode, reference electrode and temperature probe.
- Temperature probes can adjust pH measurements by correcting the electrode slope according to the measured temperature.
- The connector must match the instrument input used in your laboratory workflow. Options include S7 [S7-BNC(Q9) cable] and BNC(Q9).
Connector Options & Compatibility
Different meters may require different connection formats. Always confirm connector type before ordering.
| Connector / Option | Notes |
|---|---|
| S7 | Used with S7-BNC(Q9) cable where required by the meter configuration. |
| BNC(Q9) | Common pH electrode connector format. This model features BNC(Q9) connection. |
PRO4153 — pH Composite Electrode (Blade spear)
A practical pH composite electrode with blade spear design, Ag/AgCl reference, POM body and BNC(Q9) connector for compatible pH meters — supported by COLO.Science.
