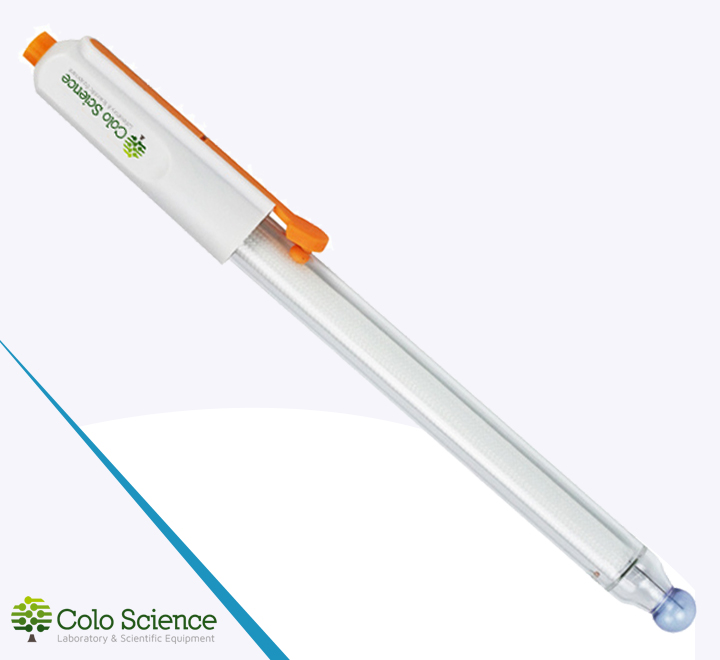

pH Composite Electrode Ag/AgCl · Φ12×120 mm · BNC(Q9) · 0–14 pH
pH Composite Electrode Ag/AgCl · Φ12×120 mm
OVERVIEW
This pH composite electrode features a robust glass body, a stable Ag/AgCl reference system, and a single ceramic junction for reliable and accurate pH measurements in a wide range of laboratory applications. With dimensions of Φ12×120 mm, it fits standard laboratory glassware and sample vessels. The electrode combines the pH indicator and reference electrode into one convenient body, eliminating the need for a separate reference electrode.
Offering a full pH range of 0–14 and a working temperature up to 60 °C, it is filled with 3 M KCl and equipped with a standard BNC(Q9) connector for direct compatibility with most laboratory pH meters. This general‑purpose electrode is ideal for routine pH measurements in educational, industrial, and research laboratories.
General‑purpose pH composite electrode with Ag/AgCl reference featuring glass body, single ceramic junction, and BNC(Q9) connector. pH 0–14, 5–60 °C, Φ12×120 mm — ideal for everyday laboratory use.COLO.Science · Practical and robust equipment for everyday laboratory workflows.
COLO.SCIENCE KNOWLEDGE
Practical insights for pH measurement and electrode care
Explore technical articles on pH electrode maintenance, calibration procedures, and best practices for accurate measurements in routine laboratory work.
Product Overview
The pH composite electrode with Ag/AgCl reference is a standard choice for routine pH measurements in aqueous solutions. Its glass body provides excellent chemical resistance, while the single ceramic junction ensures a stable liquid junction potential and reliable electrolyte flow. The BNC(Q9) connector offers direct compatibility with the majority of laboratory pH meters, making it a versatile and convenient tool for everyday use.
Compatibility notice — connector and meter matching are essential
This electrode features a standard BNC(Q9) connector, widely used on most pH meters. Always verify that your meter accepts BNC input. For meters with S7 connector, an S7‑BNC(Q9) cable is available separately.
Key Features
pH Range 0–14
Glass Body
Single Ceramic Junction
5–60 °C
3 M KCl Fill
Φ12×120 mm
BNC(Q9) Connector
Electrode
Designed for reliable routine pH measurements
Stable Ag/AgCl Reference
The well‑established silver/silver chloride reference system provides a stable and reproducible reference potential.
Single Ceramic Junction
The porous ceramic diaphragm ensures a steady flow of electrolyte and is resistant to clogging, suitable for most aqueous samples.
Standard Dimensions
The 12 mm diameter and 120 mm length fit standard laboratory glassware and electrode holders.
Electrode Design
- Standard composite electrode
- Combines pH indicator and reference electrode
- Glass body for durability
- Dimensions: Φ12×120 mm
Materials & Reference System
- Sensor material: Glass
- Reference type: Ag/AgCl
- Junction material: Single ceramic
- Fill solution: 3 M KCl
Operating Conditions & Connection
- pH range: 0–14
- Working temperature: 5–60 °C
- Connector type: BNC(Q9)
Technical Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Model | – | Name | pH composite electrode |
| pH Range | 0–14 | Fill Solution | 3 M KCl |
| Sensor material | Glass | Working Temp. | 5–60 °C |
| Junction material | Single ceramic | Reference Type | Ag/AgCl |
| Dimension | Φ12×120 mm | Connector Type | BNC(Q9) |
Note: Please verify connector and meter compatibility before purchase. This electrode has a standard BNC(Q9) connector. For meters with S7 input, an S7‑BNC(Q9) cable is available separately.
General Electrode Notes
- pH electrodes are available as pH indicator electrode, composite electrode, and 3 in 1 pH composite electrode (with temperature probe).
- A pH indicator electrode needs to cooperate with a separate reference electrode.
- A composite electrode combines the pH indicator electrode and reference electrode.
- A 3 in 1 pH composite electrode combines the pH indicator electrode, reference electrode, and temperature probe.
- Temperature probes can adjust pH measurements by correcting the electrode slope according to the measured temperature.
- The connector must be compatible with the meter you are using. Options include S7 [S7-BNC(Q9) cable] and BNC(Q9).
Connector Options & Compatibility
Different meters may require different connection formats. Always confirm connector type before ordering.
| Connector / Option | Notes |
|---|---|
| BNC(Q9) | This electrode features a standard BNC(Q9) connector. Directly compatible with most pH meters. |
| S7 | For meters with S7 input, use an S7‑BNC(Q9) cable (available separately). |
pH Composite Electrode Ag/AgCl
A reliable general‑purpose pH electrode with Ag/AgCl reference, glass body, single ceramic junction, and BNC(Q9) connector — supported by COLO.Science.
