3 in 1 pH Composite Electrode Ag/AgCl (BNC(Q9) & 4-pin aviation) 0–14 pH for pH Meter
OVERVIEW
PRO4153 is a 3 in 1 pH composite electrode designed to combine the pH indicator electrode, reference electrode and temperature probe in one practical body. This integrated configuration simplifies installation, reduces cable clutter and supports routine pH measurement workflows with compatible laboratory meters.
With a pH range of 0–14, Ag/AgCl reference system, 3 M KCl fill solution and polycarbonate sensor material, PRO4153 is a practical electrode option for laboratories that need a compact and easy-to-use pH sensor with temperature-enabled measurement support. The BNC(Q9) & 4-pin aviation connector must be matched with a compatible instrument.
Integrated 3 in 1 pH electrode for routine laboratory work combining pH sensing, reference system and temperature probe in one compact assembly. PRO4153 supports practical pH measurement workflows with 0–14 pH range, Ag/AgCl reference, 3 M KCl fill solution and BNC(Q9) + 4-pin aviation connection for compatible meters.COLO.Science · Practical and robust equipment for everyday laboratory workflows.
COLO.SCIENCE KNOWLEDGE
Practical notes for pH measurement and electrode handling
Explore practical guidance on pH electrodes, calibration routines, temperature compensation and everyday electrochemistry workflows for laboratory use.
Product Overview
PRO4153 3 in 1 pH composite electrode is intended for users who want a practical all-in-one electrode configuration. Unlike a basic pH indicator electrode, which requires a separate reference electrode, this model combines the sensing components into one assembly. In addition, the integrated temperature probe helps compatible meters adjust pH measurements by correcting the electrode slope according to the measured temperature.
Compatibility notice — connector and meter matching are essential
The connector must be compatible with the meter you are using. General connector options mentioned for this electrode family include S7 [S7-BNC(Q9) cable] and BNC(Q9). Model PRO4153 is specified with BNC(Q9) & 4-pin aviation connection. Please confirm compatibility with your meter before ordering.
Key Features
pH Indicator + Reference + Temp Probe
pH Range 0–14
Ag/AgCl Reference
3 M KCl Fill Solution
Polycarbonate Body
Single Fabric Junction
5–60 °C
BNC(Q9) + 4-pin aviation
Electrode
Practical design for everyday pH workflows
Integrated 3 in 1 Design
Combines the pH indicator electrode, reference electrode and temperature probe into one compact sensor body.
Temperature-Enabled Measurement
The integrated temperature probe supports pH measurement correction according to the measured temperature when used with a compatible meter.
Routine Laboratory Compatibility
Suitable for routine electrochemistry work where a robust body, practical dimensions and standard connector matching are important.
Electrode Structure
- 3 in 1 pH composite electrode
- Combines pH indicator electrode and reference electrode
- Includes integrated temperature probe
- Compact design for practical routine use
Materials & Reference System
- Sensor material: Polycarbonate
- Reference type: Ag/AgCl
- Junction material: Single fabric
- Fill solution: 3 M KCl
Operating Conditions & Connection
- pH range: 0–14
- Working temperature: 5–60 °C
- Dimensions: Φ12 × 120 mm
- Connector type: BNC(Q9) & 4-pin aviation
Technical Specifications (PRO4153)
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Model | PRO4153 | Name | 3 in 1 pH composite electrode |
| pH Range | 0–14 | Fill Solution | 3 M KCl |
| Sensor material | Polycarbonate | Working Temp. | 5~60 ℃ |
| Junction material | Single fabric | Reference Type | Ag/AgCl |
| Dimension | Φ12×120 mm | Connector Type | BNC(Q9)& 4-pin aviation |
Note: Please verify connector and meter compatibility before purchase. Exact supplied configuration may vary depending on quotation and application.
General Electrode Notes
- pH electrodes are available as pH indicator electrode, composite electrode and 3 in 1 pH composite electrode.
- A pH indicator electrode needs to cooperate with a separate reference electrode.
- A composite electrode combines the pH indicator electrode and reference electrode.
- A 3 in 1 pH composite electrode combines the pH indicator electrode, reference electrode and temperature probe.
- Temperature probes can adjust pH measurements by correcting the electrode slope according to the measured temperature.
- The connector must match the instrument input used in your laboratory workflow.

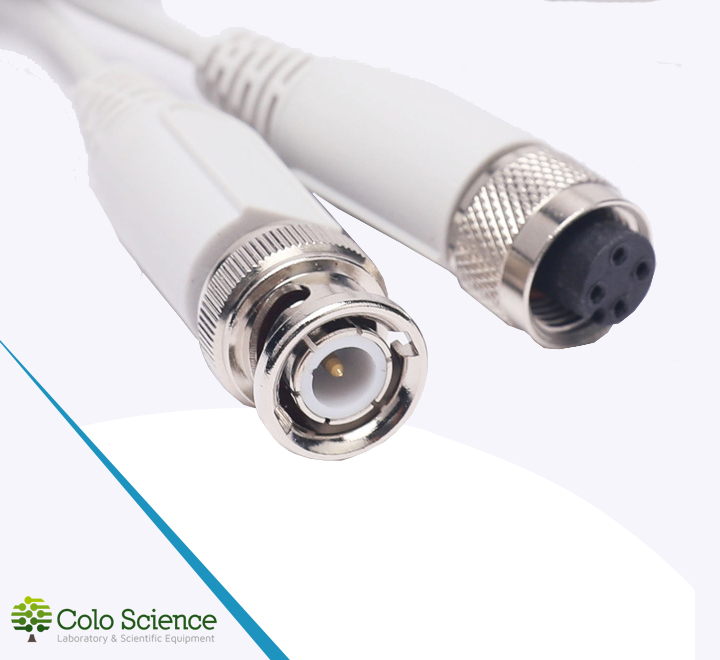

Connector Options & Compatibility
Different meters may require different connection formats. Always confirm connector type before ordering.
| Connector / Option | Notes |
|---|---|
| S7 | Used with S7-BNC(Q9) cable where required by the meter configuration. |
| BNC(Q9) | Common pH electrode connector format for compatible instruments. |
| PRO4153 actual connector | BNC(Q9) & 4-pin aviation according to the stated specification. |
PRO4153 — 3 in 1 pH Composite Electrode
A practical 3 in 1 pH electrode with integrated temperature probe, Ag/AgCl reference, polycarbonate body and BNC(Q9) + 4-pin aviation connector for compatible pH meters — supported by COLO.Science.
