GENERAL FEATURES
- pH electrodes has the pH indicator electrode, composite electrode, and 3 in1 pH composite electrode.
- pH indicator electrode needs to cooperate with reference electrode.
- Composite electrode combines the pH indicator electrode, reference electrode.
- 3 in 1 pH composite electrode combines the pH indicator electrode, reference electrode, and temperature probe.
- Temperature probes can adjust pH measurements by correcting the electrode slope according to the measured temperature.
- The connector must be compatible with the meter you are using.
- S7 【S7-BNC(Q9) cable】
- BNC(Q9)
Specifications
| Model | |

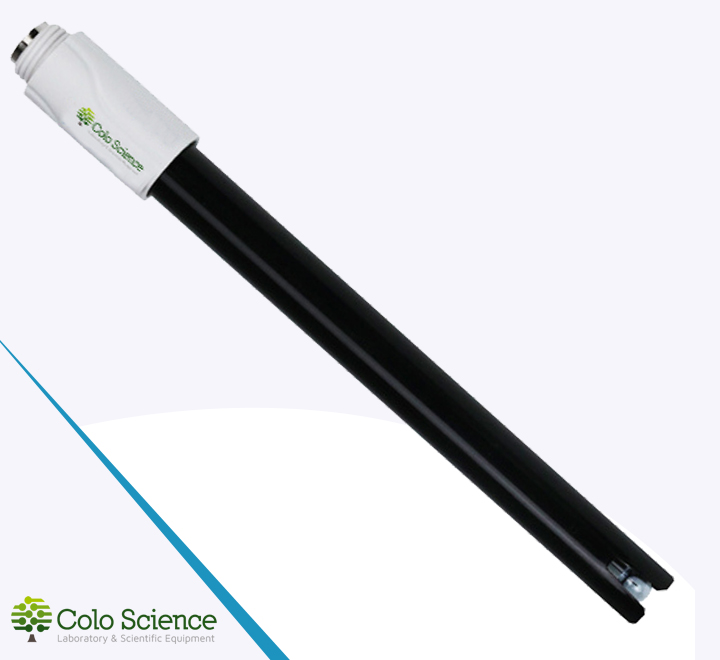

| Name | pH composite electrode (Low Maintenance) |
| pH Range | 0～14 |
| Fill Solution | unfillable |
| Sensor material | Polycarbonate |
| Working Temp. | 0~80 ℃ |
| Junction material | Open |
| Reference Type | Longlife Ref. |
| Dimension | Φ12×120 mm |
| Connector Type | BNC(Q9) |
