CENT600C textile GSM balance with 100 cm² cutter — 600 g / 0.01 g
CENT600C textile GSM balance is a matched weighing and cutting set for routine GSM determination of textile, carpet, film, foam, paper and board samples. The configuration combines a 600 g / 0.01 g precision balance with a 100 cm² GSM cutter, allowing the operator to cut a defined sample area, weigh it and calculate GSM by multiplying the measured mass by 100.
COLO.SCIENCE — TEXTILE GSM WEIGHING AND CUTTING SET
600 g / 0.01 g precision balance with 100 cm² cutter for GSM determination
CENT600C is configured for laboratories and quality-control teams that need repeatable GSM testing of textile and sheet materials. The balance provides 600 g capacity, 0.01 g readability, full-range tare, overload protection, under-hook weighing and an antivibration filter, while the supplied GSM cutter prepares a defined 100 cm² sample.
The set is suitable for textile fabric, carpet, film, foam, paper and board. For a 100 cm² sample, GSM calculation is straightforward: weigh the cut sample and multiply the sample mass in grams by 100 to obtain g/m². Optional printer, software and OIML F1 weights can be selected according to laboratory SOP and documentation requirements.
Key characteristics
- Product model: CENT600C textile GSM balance with cutter.
- Catalogue SKU: PRO2593.
- Balance capacity: 600 g.
- Readability / resolution: 0.01 g.
- GSM cutter area: 100 cm².
- Sample diameter: approx. 113 mm.
- Cutting depth: up to 5 mm.
- External linear calibration.
- High-precision load cell rated up to 30 kg for robustness and overload tolerance.
- Full-range tare, overload protection, under-hook weighing and antivibration filter.
- Optional printer, optional software and optional OIML F1 weights.
Suitable for
- Textile GSM determination and weight-per-unit-area testing.
- Fabric, carpet, film, foam, paper and board sample control.
- Incoming material inspection and production quality checks.
- Routine QC workflows with repeated sample cutting and weighing.
- Material comparison and R&D material characterisation.
- Educational textile engineering and laboratory training workflows.
- Documented GSM testing with optional printer or PC data workflow.
CENT600C — PRACTICAL GSM TESTING FOR TEXTILE AND SHEET MATERIALS
CENT600C textile GSM balance for routine material quality control
CENT600C textile GSM balance is suitable when a laboratory needs one matched set for cutting and weighing samples during GSM determination. The 100 cm² GSM cutter prepares a defined area, while the 600 g / 0.01 g balance measures the sample mass for conversion to grams per square metre.
For a 100 cm² sample, the GSM calculation is simple and practical for routine operators: measured mass in grams × 100 = GSM in g/m². This makes CENT600C useful for textile QC, receiving inspection, material comparison and production checks where repeated, comparable measurements are required.
For documented work, CENT600C can be configured with an optional printer, optional data-collection software and OIML F1 weights for external calibration and routine verification. The final configuration should define material type, sample thickness, number of samples per batch, reporting format, calibration interval and documentation requirements.

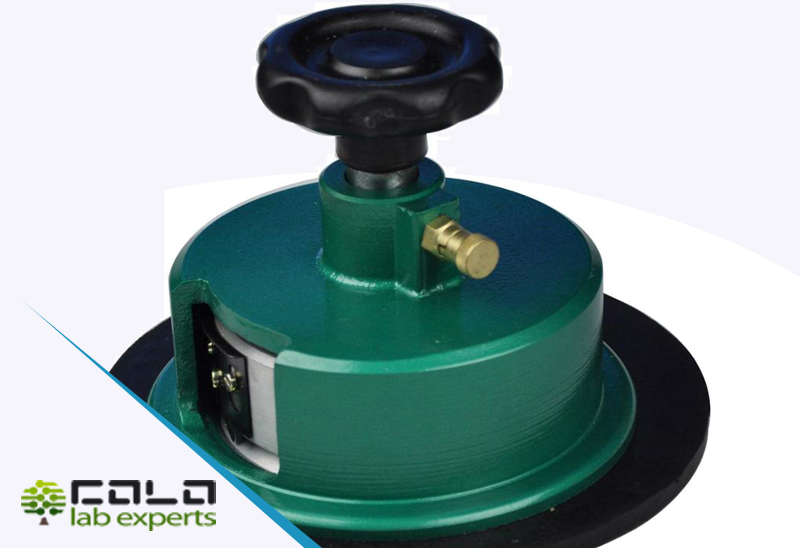

CENT600C GSM cutter, printer and OIML F1 weights
The supplied 100 cm² GSM cutter prepares a defined sample area for fast and repeatable GSM determination of textile, carpet, film, foam, paper and board materials. It is equipped with a specially sharp blade set for precise and clean sample cutting.
Optional balance printer supports printed measurement records when paper traceability is required for QC release, incoming inspection or batch documentation.
Optional OIML F1 control weights are recommended for external calibration, routine verification and documented laboratory SOP compliance.
CENT600C — model and configuration table
| Catalogue SKU | Model | Balance capacity | Readability | Cutter area | Sample diameter | Cutting depth | Calibration | Options |
|---|---|---|---|---|---|---|---|---|
| PRO2593 | CENT600C | 600 g | 0.01 g | 100 cm² | Approx. 113 mm | Up to 5 mm | External linear | Printer / software / F1 weights |
Source note: CENT600C is configured as a balance and GSM cutter set. Final delivered kit contents, optional printer, software, F1 weights, spare blades, certificates and documentation requirements should be confirmed in the official quotation.
TECHNICAL SPECIFICATIONS — CENT600C TEXTILE GSM BALANCE SET
| Product model | CENT600C textile GSM balance with supplied GSM cutter |
| Catalogue SKU | PRO2593 |
| Balance capacity | 600 g |
| Readability / resolution | 0.01 g |
| Load cell rating | High precision load cell, up to 30 kg |
| Calibration | External linear calibration |
| Tare range | Full range |
| Protection and stability | Overload protection; antivibration filter |
| Under-hook weighing | Available for density / below-balance weighing applications |
| Power supply | AC adapter 100–240 V |
| Balance dimensions | Approx. 220 × 300 × 110 mm |
| Balance weight | Approx. 2.5 kg |
| GSM cutter cutting area | 100 cm² |
| Sample diameter | Approx. 113 mm |
| Cutting depth | Up to 5 mm |
| Cutter blades | Reversible high-quality steel blades |
| Materials | Textile, carpet, film, foam, paper, board |
| Referenced standards | GB/T4802.1, GB/T4669 |
Final weighing and GSM testing performance depends on clean sample preparation, sharp cutter blades, stable balance installation, correct levelling, vibration control, external calibration, suitable F1 weights and the laboratory’s internal GSM procedure. Final kit content and accessories are confirmed in the official quotation.
GSM workflow and operating functions
Sample cutting
Cut a representative sample with the supplied 100 cm² GSM cutter. Keep samples clean and flat, and repeat cuts across representative material positions.
Weighing
Place the cut sample on the CENT600C balance and record the measured mass with 0.01 g readability.
GSM calculation
For a 100 cm² sample, convert mass to GSM by multiplying the measured mass in grams by 100.
Documentation
Optional printer and software can support printed records, PC data capture and QC reporting when traceability is required.
STANDARD CONFIGURATION, OPTIONAL ACCESSORIES AND F1 CONTROL WEIGHTS
CENT600C balance, 100 cm² cutter, optional printer, software and OIML F1 weights
CENT600C is supplied as a balance and GSM cutter set. Optional accessories should be selected according to the customer’s GSM method, QC documentation requirements and calibration procedure. Include OIML F1 weights when routine verification, calibration traceability or documented QC control is required.
OIML F1 calibration / control weights
Recommended for routine balance checks, external calibration, audit support and documented verification points.
Optional balance printer
Useful when paper traceability, printed measurement records or batch release documentation is required.
Configuration logic
- Balance + GSM cutter set for 100 cm² samples.
- External linear calibration with suitable F1 weights.
- Optional software for data collection and process control.
- RS-232 / USB adapter workflow should be confirmed before ordering.
- Spare blade set can be added for routine cutting work.
- Certificates according to customer SOP and audit requirements.
Ordering note: final CENT600C configuration should confirm material type, sample thickness, required GSM method, number of samples per batch, printer requirement, PC data workflow, F1 weight values, certificates, spare blades and final kit content.
Standard delivery, options and data output
Typical standard delivery
Typical CENT600C delivery includes the precision balance, GSM cutter with 100 cm² cutting area, AC power adapter, user manual and quick-start guide. Final kit content is confirmed in quotation.
Available options
Optional configuration may include printer, data-collection software, RS-232 / USB adapter workflow, OIML F1 weights, calibration certificates and spare blade set.
Data workflow
Optional printer and software workflows support measurement records, PC data collection and process control where QC traceability is required.
WEIGHING CATALOGUE
Compare special balances, precision balances and weighing accessories
Use the weighing catalogue to compare CENT600C with precision balances, special balances, calibration weights, printers and weighing accessories.
COLO.SCIENCE KNOWLEDGE AND SUPPORT
Selection support for textile GSM balance sets and weighing accessories
COLO.Science supports complete GSM testing configurations: balance and cutter selection, sample workflow, F1 weight selection, printer workflow, software requirement, spare blades, certificates and documented QC procedures.
Applications and operational value
Textile GSM determination
CENT600C supports routine grams-per-square-metre determination for textile fabrics using a precise 100 cm² sample area.
Sheet material QC
The cutter and balance set can be used for film, foam, paper, board and other flat materials where controlled area sampling is required.
Matched cutting and weighing
Using a supplied cutter and balance as one matched set reduces handling variation between cutting, weighing and GSM calculation steps.
Documentation and traceability
Optional printer, PC workflow and F1 weights support documented testing, routine checks and traceable QC records.
How to configure CENT600C for your laboratory
Before quotation, define the material type, sample thickness, required GSM method, number of samples per batch and expected reporting format. The 100 cm² cutter is suitable for flat materials up to 5 mm cutting depth, including textile, carpet, film, foam, paper and board.
For weighing control, define the external calibration routine and select suitable OIML F1 weights with certificates if required by SOP. For documentation, define whether printed records, PC export, software workflow or RS-232 / USB adapter configuration is required.
CENT600C textile GSM balance for routine 100 cm² sample testing
CENT600C textile GSM balance is a practical laboratory and QC set for cutting, weighing and calculating GSM of textile and sheet materials. The combination of a 100 cm² GSM cutter and a 600 g / 0.01 g precision balance supports repeatable testing where sample area, mass measurement and reporting need to be controlled in one routine workflow.
In practical use, CENT600C performance depends on representative sampling, flat material preparation, blade condition, stable balance installation, external calibration and a suitable control-weight procedure. Optional printer, software, F1 weights, spare blades and certificates can be added according to laboratory SOP and documentation requirements.
Configuration notice
CENT600C may be supplied with different kit contents depending on selected accessories, printer, software, RS-232 / USB workflow, spare blade requirement, OIML F1 calibration / control weights, certificates and documentation requirements. The official quotation defines the final delivery scope, including confirmed kit content and accessory configuration. Website content is intended for general product presentation and may not represent the exact delivered configuration. Specifications may change without notice.
