COLO.Science — WEIGHING / MILLIGRAM BALANCES — MILI-TVG SERIES

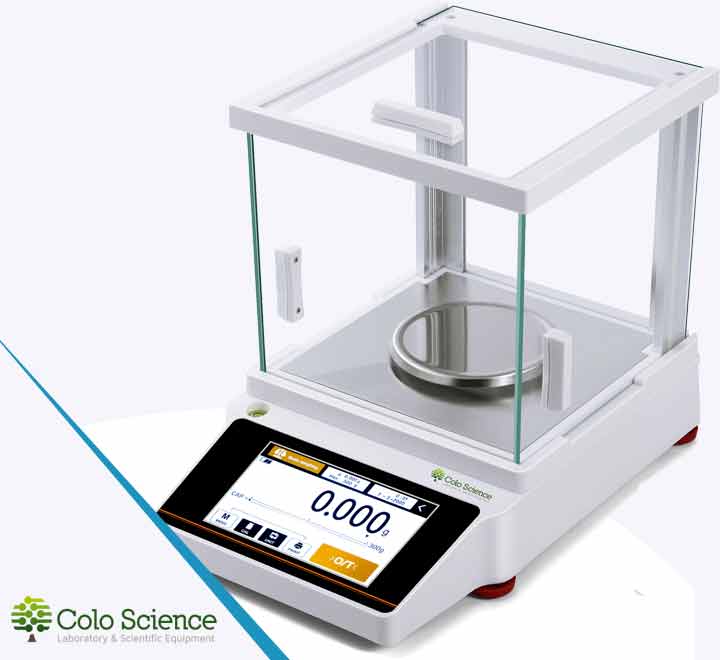

MILI-TVG milligram balance 100–600 g / 1 mg with touch screen glass windshield
MILI-TVG milligram balance is a touch screen laboratory weighing series for routine 0.001 g / 1 mg work where stable milligram readability, glass windshield protection and practical data output are required. The series covers 100 g, 200 g, 300 g, 400 g, 500 g and 600 g capacities, with external calibration, touch screen operation, RS232 / USB output and a transparent glass windshield for protection against air movement.
COLO.SCIENCE — TOUCH SCREEN MILLIGRAM LABORATORY WEIGHING
1 mg readability with touch screen control, glass windshield and RS232 / USB output
MILI-TVG is a compact touch screen milligram weighing platform for laboratories that need stable 0.001 g readability, fast stabilization and a fully transparent glass windshield. The series supports basic weighing, piece weighing, percentage weighing, check weighing, animal weighing and communication settings, making it suitable for QC laboratories, research work, pharmaceutical preparation, educational laboratories and routine sample control.
The MILI-TVG series is supplied as a glass windshield milligram balance platform with external calibration, high-speed 24-bit AD conversion, stainless steel 90 mm weighing pan, ABS housing, die-cast aluminum base, optional accumulator power and RS232 / USB connectivity for printer or computer connection.
Key characteristics
- Model capacities: 100 g, 200 g, 300 g, 400 g, 500 g and 600 g.
- Readability / resolution: 0.001 g / 1 mg across the series.
- Repeatability: ±0.002 g.
- Linearity: ±0.002 g.
- External calibration with suitable standard weight.
- Touch screen control with direct access to weighing functions.
- Transparent touch screen glass windshield for air-movement protection.
- RS232 and USB output for printer or computer connection.
- Optional 6 V 1.3 Ah lead-acid accumulator for backup power.
Suitable for
- Routine laboratory weighing with 1 mg readability.
- Sample preparation, reagents, standards and prepared solutions.
- Quality control and formulation verification workflows.
- Pharmaceutical, chemical, food and educational laboratories.
- Piece counting and small-component kitting workflows.
- Documented weighing with optional printer or PC data workflow.
MILI-TVG SERIES — PRACTICAL SELECTION FOR 1 MG LABORATORY WEIGHING
MILI-TVG milligram balance for routine laboratory tasks
MILI-TVG milligram balance is suitable when a laboratory needs reliable 1 mg weighing, touch screen operation, external calibration and glass windshield protection. With capacities from 100 g to 600 g, the MILI-TVG series covers routine laboratory tasks such as sample preparation, mass control, small formulations, standards preparation, QC checks and piece counting by reference mass.
When selecting a model, MILI-TVG milligram balance should be matched to the maximum total load on the pan: sample, container and any accessories used during the method. The 100 g, 200 g and 300 g versions are practical for smaller samples and precise routine weighing, while the 400 g, 500 g and 600 g versions provide more capacity for larger containers or higher total mass.
For stable work, MILI-TVG milligram balance should be used on a calm, levelled bench with control of air movement and regular external calibration. This makes MILI-TVG milligram balance a practical solution for laboratories that need simple touch screen operation, 1 mg readability, RS232 / USB output, optional accumulator power and optional documentation of results with a printer or PC data workflow.
MILI-TVG balance, printer and OIML F1 calibration weights
MILI-TVG series covers 100–600 g capacity, 1 mg readability, external calibration, touch screen operation, glass windshield and RS232 / USB output.
Optional thermal printer supports direct printout of weighing results where laboratory procedures require printed records.
Optional OIML F1 calibration / control weights can be selected for routine verification, documented control procedures and laboratory SOP requirements.
MILI-TVG series — model variants and SKU table
| SKU | Model variant | Capacity | Readability | Windshield | Repeatability | Linearity | Calibration | Output |
|---|---|---|---|---|---|---|---|---|
| PRO4725 | MILI-TVG 100g/0.001g | 100 g | 0.001 g / 1 mg | Touch screen glass windshield | ±0.002 g | ±0.002 g | External | RS232 / USB |
| PRO7008 | MILI-TVG 200g/0.001g | 200 g | 0.001 g / 1 mg | Touch screen glass windshield | ±0.002 g | ±0.002 g | External | RS232 / USB |
| PRO7009 | MILI-TVG 300g/0.001g | 300 g | 0.001 g / 1 mg | Touch screen glass windshield | ±0.002 g | ±0.002 g | External | RS232 / USB |
| PRO7010 | MILI-TVG 400g/0.001g | 400 g | 0.001 g / 1 mg | Touch screen glass windshield | ±0.002 g | ±0.002 g | External | RS232 / USB |
| PRO7011 | MILI-TVG 500g/0.001g | 500 g | 0.001 g / 1 mg | Touch screen glass windshield | ±0.002 g | ±0.002 g | External | RS232 / USB |
| PRO7012 | MILI-TVG 600g/0.001g | 600 g | 0.001 g / 1 mg | Touch screen glass windshield | ±0.002 g | ±0.002 g | External | RS232 / USB |
Source note: MILI-TVG model capacities, SKU values and technical data are based on the supplied MILI-TVG technical specification. This consolidated product page includes the touch screen glass windshield models only. Final model, accessories and documentation should be confirmed in the official quotation.
TECHNICAL SPECIFICATIONS — MILI-TVG MILLIGRAM BALANCE
| Product series | MILI-TVG touch screen glass windshield milligram balance series |
| SKU range | PRO4725, PRO7008, PRO7009, PRO7010, PRO7011, PRO7012 |
| Model variants | MILI-TVG 100g/0.001g, 200g/0.001g, 300g/0.001g, 400g/0.001g, 500g/0.001g, 600g/0.001g |
| Balance type | Touch screen milligram precision laboratory balance |
| Model capacities | 100 / 200 / 300 / 400 / 500 / 600 g |
| Maximum capacity | 600 g |
| Readability / resolution | 0.001 g / 1 mg |
| Repeatability | ±0.002 g / ±2 mg |
| Linearity | ±0.002 g / ±2 mg |
| Stabilization time | 3 seconds |
| Calibration | External calibration with standard weight |
| Control / converter | Touch screen control, high-speed 24-bit AD converter |
| Weighing functions | Basic weighing, piece weighing, percentage weighing, check weighing, animal weighing, communication settings |
| Tare range | Full range |
| Windshield | Touch screen glass windshield |
| Weighing pan | 90 mm diameter stainless steel balance pan |
| Housing / base | ABS environmental material with die-cast aluminum base |
| Interface / output | RS232, USB |
| Power accumulator | Optional 6 V 1.3 Ah lead-acid accumulator |
| Power requirements | Adapter input: 100–240 V ~ 200 mA, 50–60 Hz, 12–18 VA; output: 5 VDC 2.5 A |
| Overall size | 280 × 190 × 270 mm |
| N.W. / G.W. | 4 kg / 6 kg |
| Shipping dimension | 43 × 30 × 41 cm |
Final weighing performance depends on installation quality, environmental stability, correct levelling, vibration control, warm-up routine, sample handling, external calibration procedure and selected control-weight practice. Final model configuration, accessories, certificates and documentation are confirmed in the official quotation.
Operating and weighing functions
Milligram weighing
MILI-TVG supports routine 1 mg laboratory weighing for samples, reagents, standards, prepared solutions, ingredients and small containers in daily laboratory workflows.
Piece weighing and counting
Piece weighing and counting support small-component counting by reference mass where sample uniformity and reference preparation are appropriate.
Percentage and check weighing
Percentage weighing and check weighing support preparation control, formulation verification and routine QC workflows.
Data output
RS232 and USB interfaces support connection to compatible laboratory systems, optional printer workflows and PC data collection requirements.
STANDARD CONFIGURATION, OPTIONAL ACCESSORIES AND OIML F1 CONTROL WEIGHTS
Standard weight, printer option, glass windshield and OIML F1 calibration / control weights
MILI-TVG uses external calibration with a suitable standard weight. Additional OIML F1 weights can be selected for routine control, verification points, SOP requirements and documented laboratory procedures. The capacity, printer requirement, data workflow, control-weight package and documentation level should be confirmed before quotation.
OIML F1 calibration / control weights
Recommended for routine balance control, audit support, documented verification points and laboratory SOP compliance.
Optional thermal printer
Supports direct printout of weighing results when laboratory procedures require printed measurement records.
Configuration logic
- Touch screen glass windshield for clear sample visibility.
- External calibration with suitable standard weight.
- RS232 / USB for printer, PC or compatible laboratory data workflows.
- Optional accumulator for backup power and flexible bench placement.
- F1 weights and certificates according to laboratory procedure.
Ordering note: final MILI-TVG configuration should confirm model capacity, standard weight, additional F1 control weights, printer, RS232C cable / PC software, spare weighing pan, certificates and documentation requirements.
Standard delivery, options and data output
Typical standard delivery
Typical MILI-TVG delivery includes the selected touch screen milligram balance with glass windshield, universal power adapter, stainless steel 90 mm pan and user documentation. Standard weight configuration should be confirmed in the quotation.
Available options
Optional configuration may include thermal printer, additional OIML F1 calibration / control weights, RS232C cable, PC software for data collection, spare stainless steel weighing pans and accumulator power.
RS232 / USB data workflow
RS232 and USB interfaces support compatible printers, computers and laboratory data workflows. Exact communication requirements should be confirmed before quotation.
WEIGHING CATALOGUE
Compare milligram balances, precision balances and weighing accessories
Use the weighing catalogue to compare MILI-TVG models with other milligram balances, analytical balances, precision balances, calibration weights and weighing accessories.
COLO.SCIENCE KNOWLEDGE AND SUPPORT
Selection support for milligram balances, glass windshield use and F1 weights
COLO.Science supports complete weighing configurations: balance selection, external calibration routine, F1 weight selection, certificates, printer workflows, interface options and documented weighing procedures for laboratory users.
Applications and operational value
Precision laboratory weighing
MILI-TVG is suitable for accurate measurement of samples, reagents, standards and prepared solutions in QC, research and pharmaceutical laboratory workflows.
Piece counting and inventory
Piece weighing and counting support small-component counting, inventory work and kitting operations where accurate reference mass is required.
Touch screen glass windshield
The transparent glass windshield helps reduce the influence of air movement and keeps the sample and weighing pan visible during milligram weighing.
Data transfer and optional accumulator
RS232 / USB connectivity and optional accumulator power support flexible bench workflows, printer use and PC data transfer.
How to select the appropriate MILI-TVG model
When selecting a MILI-TVG model, first define the maximum total mass on the pan: sample, container, weighing vessel and any accessories used during the method. Lower-capacity models are practical for compact sample preparation and precise routine milligram work, while 400–600 g models are suitable when larger containers or higher total load are required.
The second selection step is the laboratory workflow. For documented laboratory work, define the external calibration routine, control-weight class, printer requirement, RS232 / USB data workflow, certificate requirements and acceptable weighing limits. The transparent glass windshield is recommended where stable 1 mg weighing is required and air movement around the pan must be reduced.
MILI-TVG milligram balance for 1 mg touch screen laboratory weighing
MILI-TVG milligram balance is suitable for laboratories that need practical 1 mg weighing for routine samples, reagents, standards, formulation checks, QC workflows and piece counting. The series combines touch screen operation, transparent glass windshield protection, stainless steel weighing pan, external calibration, RS232 / USB communication and optional accumulator power in a laboratory balance platform covering 100–600 g.
In practical use, MILI-TVG performance depends on correct installation, stable temperature, suitable weighing bench, proper levelling, external calibration routine, vibration control and a suitable control-weight procedure. Optional printer, PC data collection accessories, additional F1 control weights and spare weighing pans can be added according to laboratory method and documentation requirements.
Configuration notice
MILI-TVG milligram balance models may be supplied with different configurations depending on selected capacity, printer, communication accessories, OIML F1 calibration / control weights, certificates and documentation requirements. The official quotation defines the final delivery scope, including confirmed model variant and accessory configuration. Website content is intended for general product presentation and may not represent the exact delivered configuration. Specifications may change without notice.
