COLO.Science — WEIGHING / MILLIGRAM BALANCES — MILI-TP SERIES

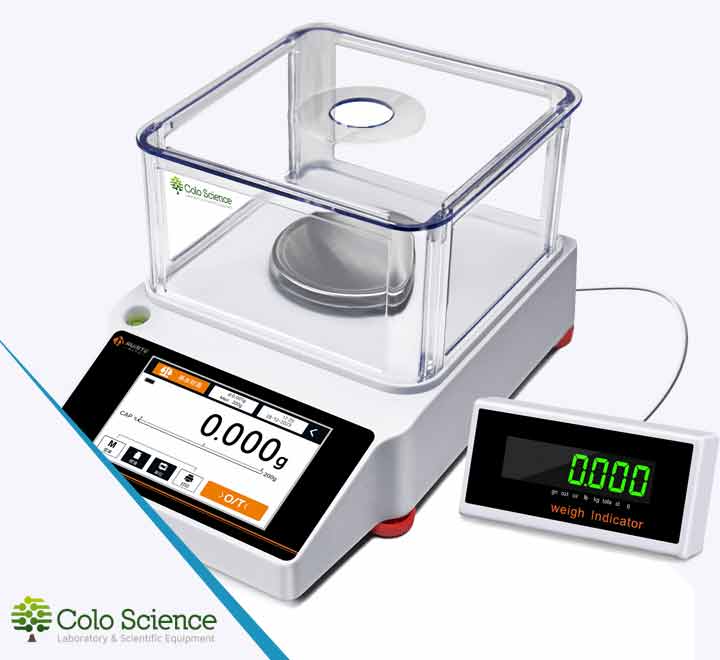

MILI-TP milligram balance 100–600 g / 1 mg with touch screen plastic draft shield
MILI-TP milligram balance is a touch screen laboratory weighing series for routine 0.001 g / 1 mg work where stable milligram readability, plastic draft protection and practical data output are required. The series covers 100 g, 200 g, 300 g, 400 g, 500 g and 600 g capacities, with external calibration, touch screen operation, RS232 / USB output, optional accumulator power and an optional external display for easier reading.
COLO.SCIENCE — TOUCH SCREEN MILLIGRAM LABORATORY WEIGHING
1 mg readability with touch screen control, plastic draft shield and RS232 / USB output
MILI-TP is a compact milligram weighing platform for laboratories that need stable 0.001 g readability, fast stabilization and transparent plastic protection against air movement. The series supports basic weighing, piece counting, full-range tare and multiple laboratory weighing units, making it suitable for QC laboratories, research work, pharmaceutical preparation, educational laboratories and routine sample control.
The MILI-TP series is supplied as a touch screen plastic draft shield milligram balance platform with external calibration, high-speed 24-bit AD conversion, stainless steel 90 mm weighing pan, ABS housing, die-cast aluminum base, optional accumulator power, optional external display and RS232 / USB connectivity for printer or computer connection.
Key characteristics
- Model capacities: 100 g, 200 g, 300 g, 400 g, 500 g and 600 g.
- Readability / resolution: 0.001 g / 1 mg across the series.
- Repeatability: ±0.002 g.
- Linearity: ±0.002 g.
- External calibration with suitable standard weight.
- Touch screen control for direct access to weighing functions.
- Transparent plastic draft shield for protection against air movement.
- Optional external display for easier reading in selected workflows.
- RS232 and USB output for printer or computer connection.
- Optional 6 V 1.3 Ah lead-acid accumulator for backup power.
Suitable for
- Routine laboratory weighing with 1 mg readability.
- Sample preparation, reagents, standards and prepared solutions.
- Quality control and formulation verification workflows.
- Pharmaceutical, chemical, food and educational laboratories.
- Piece counting and small-component kitting workflows.
- Documented weighing with optional printer or PC data workflow.
MILI-TP SERIES — PRACTICAL SELECTION FOR 1 MG LABORATORY WEIGHING
MILI-TP milligram balance for routine laboratory tasks
MILI-TP milligram balance is suitable when a laboratory needs reliable 1 mg weighing, touch screen operation, external calibration and plastic draft protection. With capacities from 100 g to 600 g, the MILI-TP series covers routine laboratory tasks such as sample preparation, mass control, small formulations, standards preparation, QC checks and piece counting by reference mass.
When selecting a model, MILI-TP milligram balance should be matched to the maximum total load on the pan: sample, container and any accessories used during the method. The 100 g, 200 g and 300 g versions are practical for smaller samples and precise routine weighing, while the 400 g, 500 g and 600 g versions provide more capacity for larger containers or higher total mass.
For stable work, MILI-TP milligram balance should be used on a calm, levelled bench with control of air movement and regular external calibration. This makes MILI-TP milligram balance a practical solution for laboratories that need simple touch screen operation, 1 mg readability, RS232 / USB output, optional external display, optional accumulator power and optional documentation of results with a printer or PC data workflow.
MILI-TP balance, printer and OIML F1 calibration weights
MILI-TP series covers 100–600 g capacity, 1 mg readability, external calibration, touch screen operation, plastic draft shield, optional external display and RS232 / USB output.
Optional thermal printer supports direct printout of weighing results where laboratory procedures require printed records.
Optional OIML F1 calibration / control weights can be selected for routine verification, documented control procedures and laboratory SOP requirements.
MILI-TP series — model variants and SKU table
| SKU | Model variant | Capacity | Readability | Draft shield | Repeatability | Linearity | Calibration | Output |
|---|---|---|---|---|---|---|---|---|
| PRO7019 | MILI-TP 100g/0.001g | 100 g | 0.001 g / 1 mg | Touch screen plastic draft shield | ±0.002 g | ±0.002 g | External | RS232 / USB |
| PRO7020 | MILI-TP 200g/0.001g | 200 g | 0.001 g / 1 mg | Touch screen plastic draft shield | ±0.002 g | ±0.002 g | External | RS232 / USB |
| PRO7021 | MILI-TP 300g/0.001g | 300 g | 0.001 g / 1 mg | Touch screen plastic draft shield | ±0.002 g | ±0.002 g | External | RS232 / USB |
| PRO7022 | MILI-TP 400g/0.001g | 400 g | 0.001 g / 1 mg | Touch screen plastic draft shield | ±0.002 g | ±0.002 g | External | RS232 / USB |
| PRO7023 | MILI-TP 500g/0.001g | 500 g | 0.001 g / 1 mg | Touch screen plastic draft shield | ±0.002 g | ±0.002 g | External | RS232 / USB |
| PRO7024 | MILI-TP 600g/0.001g | 600 g | 0.001 g / 1 mg | Touch screen plastic draft shield | ±0.002 g | ±0.002 g | External | RS232 / USB |
Source note: MILI-TP model capacities, SKU values and technical data are based on the supplied MILI-TP technical specification. This consolidated product page includes the touch screen plastic draft shield models. Final model, accessories and documentation should be confirmed in the official quotation.
TECHNICAL SPECIFICATIONS — MILI-TP MILLIGRAM BALANCE
| Product series | MILI-TP touch screen plastic draft shield milligram balance series |
| SKU range | PRO7019, PRO7020, PRO7021, PRO7022, PRO7023, PRO7024 |
| Model variants | MILI-TP 100g/0.001g, 200g/0.001g, 300g/0.001g, 400g/0.001g, 500g/0.001g, 600g/0.001g |
| Balance type | Touch screen milligram precision laboratory balance |
| Model capacities | 100 / 200 / 300 / 400 / 500 / 600 g |
| Maximum capacity | 600 g |
| Readability / resolution | 0.001 g / 1 mg |
| Repeatability | ±0.002 g / ±2 mg |
| Linearity | ±0.002 g / ±2 mg |
| Stabilization time | 3 seconds |
| Calibration | External calibration with standard weight |
| Control / converter | Touch screen control, high-speed 24-bit AD converter |
| Weighing functions | Basic weighing, piece counting, full-range tare and multiple laboratory weighing units |
| Tare range | Full range |
| Draft shield | Plastic protection against air movement |
| Display | Touch screen display; optional external display available |
| Weighing pan | 90 mm diameter stainless steel balance pan |
| Housing / base | ABS environmental material with die-cast aluminum base |
| Interface / output | RS232, USB |
| Power accumulator | Optional 6 V 1.3 Ah lead-acid accumulator |
| Power requirements | Adapter input: 100–240 V ~ 200 mA, 50–60 Hz, 12–18 VA; output: 5 VDC 2.5 A |
| Overall size | 280 × 190 × 270 mm |
| N.W. / G.W. | 4 kg / 6 kg |
| Shipping dimension | 43 × 30 × 41 cm |
Final weighing performance depends on installation quality, environmental stability, correct levelling, vibration control, warm-up routine, sample handling, external calibration procedure and selected control-weight practice. Final model configuration, accessories, certificates and documentation are confirmed in the official quotation.
Operating and weighing functions
Milligram weighing
MILI-TP supports routine 1 mg laboratory weighing for samples, reagents, standards, prepared solutions, ingredients and small containers in daily laboratory workflows.
Piece counting
Piece counting supports small-component counting by reference mass where sample uniformity and reference preparation are appropriate.
Full-range tare
Full-range tare supports container tare workflows during sample preparation, formulation, QC weighing and educational laboratory exercises.
Data output
RS232 and USB interfaces support connection to compatible laboratory systems, optional printer workflows and PC data collection requirements.
STANDARD CONFIGURATION, OPTIONAL ACCESSORIES AND OIML F1 CONTROL WEIGHTS
Standard weight, printer option, plastic draft shield, optional display and OIML F1 calibration / control weights
MILI-TP uses external calibration with a suitable standard weight. Additional OIML F1 weights can be selected for routine control, verification points, SOP requirements and documented laboratory procedures. The capacity, optional display, printer requirement, data workflow, control-weight package and documentation level should be confirmed before quotation.
OIML F1 calibration / control weights
Recommended for routine balance control, audit support, documented verification points and laboratory SOP compliance.
Optional thermal printer
Supports direct printout of weighing results when laboratory procedures require printed measurement records.
Configuration logic
- Touch screen plastic draft shield for air-movement protection.
- Optional external display for easier reading in selected workflows.
- External calibration with suitable standard weight.
- RS232 / USB for printer, PC or compatible laboratory data workflows.
- Optional accumulator for backup power and flexible bench placement.
- F1 weights and certificates according to laboratory procedure.
Ordering note: final MILI-TP configuration should confirm model capacity, standard weight, optional external display, additional F1 control weights, printer, RS232C cable / PC software, spare weighing pan, certificates and documentation requirements.
Standard delivery, options and data output
Typical standard delivery
Typical MILI-TP delivery includes the selected touch screen milligram balance with plastic draft shield, universal power adapter, stainless steel 90 mm pan and user documentation. Standard weight configuration should be confirmed in the quotation.
Available options
Optional configuration may include external display, thermal printer, additional OIML F1 calibration / control weights, RS232C cable, PC software for data collection, spare stainless steel weighing pans and accumulator power.
RS232 / USB data workflow
RS232 and USB interfaces support compatible printers, computers and laboratory data workflows. Exact communication requirements should be confirmed before quotation.
WEIGHING CATALOGUE
Compare milligram balances, precision balances and weighing accessories
Use the weighing catalogue to compare MILI-TP models with other milligram balances, analytical balances, precision balances, calibration weights and weighing accessories.
COLO.SCIENCE KNOWLEDGE AND SUPPORT
Selection support for milligram balances, draft protection and F1 weights
COLO.Science supports complete weighing configurations: balance selection, external calibration routine, F1 weight selection, certificates, printer workflows, interface options and documented weighing procedures for laboratory users.
Applications and operational value
Precision laboratory weighing
MILI-TP is suitable for accurate measurement of samples, reagents, standards and prepared solutions in QC, research and pharmaceutical laboratory workflows.
Piece counting and inventory
Piece counting supports small-component counting, inventory work and kitting operations where accurate reference mass is required.
Touch screen plastic draft shield
The transparent plastic draft shield helps reduce the influence of air movement and keeps the sample and weighing pan visible during milligram weighing.
Data transfer, optional display and accumulator
RS232 / USB connectivity, optional external display and optional accumulator power support flexible bench workflows, printer use and PC data transfer.
How to select the appropriate MILI-TP model
When selecting a MILI-TP model, first define the maximum total mass on the pan: sample, container, weighing vessel and any accessories used during the method. Lower-capacity models are practical for compact sample preparation and precise routine milligram work, while 400–600 g models are suitable when larger containers or higher total load are required.
The second selection step is the laboratory workflow. For documented laboratory work, define the external calibration routine, control-weight class, printer requirement, RS232 / USB data workflow, certificate requirements, optional external display requirement and acceptable weighing limits. The transparent plastic draft shield is suitable where routine 1 mg weighing requires reduced air movement around the pan.
MILI-TP milligram balance for 1 mg touch screen laboratory weighing
MILI-TP milligram balance is suitable for laboratories that need practical 1 mg weighing for routine samples, reagents, standards, formulation checks, QC workflows and piece counting. The series combines touch screen operation, transparent plastic draft protection, stainless steel weighing pan, external calibration, RS232 / USB communication, optional external display and optional accumulator power in a laboratory balance platform covering 100–600 g.
In practical use, MILI-TP performance depends on correct installation, stable temperature, suitable weighing bench, proper levelling, external calibration routine, vibration control and a suitable control-weight procedure. Optional printer, PC data collection accessories, additional F1 control weights, optional external display and spare weighing pans can be added according to laboratory method and documentation requirements.
Configuration notice
MILI-TP milligram balance models may be supplied with different configurations depending on selected capacity, optional display, printer, communication accessories, OIML F1 calibration / control weights, certificates and documentation requirements. The official quotation defines the final delivery scope, including confirmed model variant and accessory configuration. Website content is intended for general product presentation and may not represent the exact delivered configuration. Specifications may change without notice.
