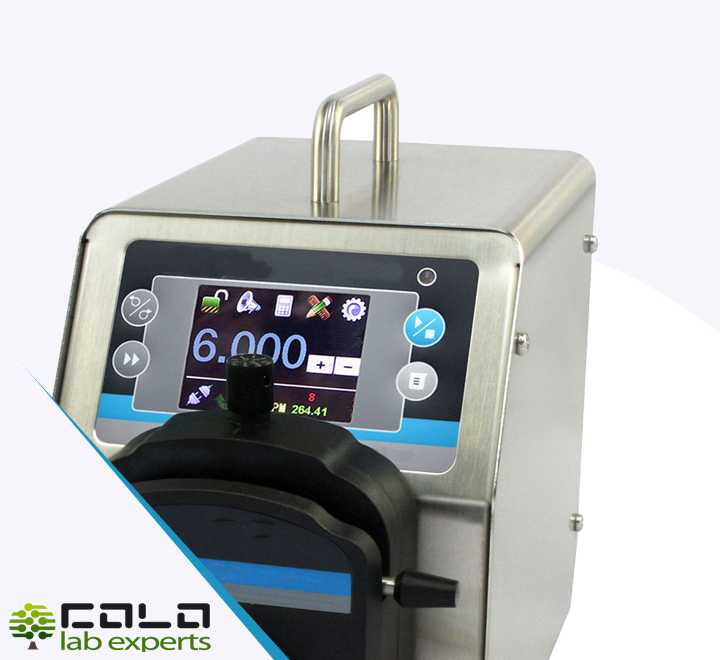

PERPIN2 is a portable microflow variable-speed peristaltic pump with color LCD Displaying, Touch Screen and keypad. Variable pump heads and tubing it offers not only basic functions such as start/stop, reversible direction and adjustable speed, Time Dispense Mode to dispense fluid by setting the duration time for each dose. With standard RS485 MODBUS interface, it is easy to communicate with external device, such as PC, HMI or PLC.
- Flow range: 0.006-2900 mL/min
- Speed range: 0.1-600 rpm
- Speed resolution: 0.1 rpm
- Flow accuracy: 0.2% [icon na
- Power supply: AC 220V ± 10% 50Hz/60Hz
- Power consumption: < 60W
- External logic level control signal: 5V, 12V (standard), 24V (optional)
- External analog control signal: 0-5V (standard); 0-10V, 4-20mA (optional)
- External communication interface: MODBUS RS485
- Ambient temperature: 0-40 °C
- Relative humidity: < 80%
- IP grade: IP31
- Dimensions (L x W x H): 260 x 181 x 198 mm
- Weight: 5,5 kg
