CMPA1 — Melting Point Apparatus with Microscope
OVERVIEW
The melting point of a substance is the temperature at which it changes from a solid to a liquid state. In organic chemistry and pharmaceutical analysis, melting point determination is a fundamental tool for confirming identity and assessing purity of crystalline substances. Reliable instruments are therefore essential in chemical and pharmaceutical production, research laboratories and education.

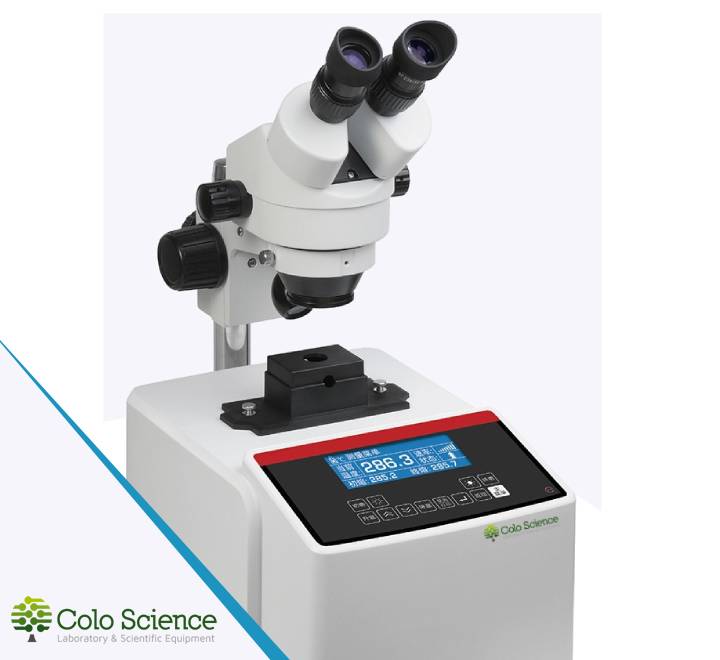

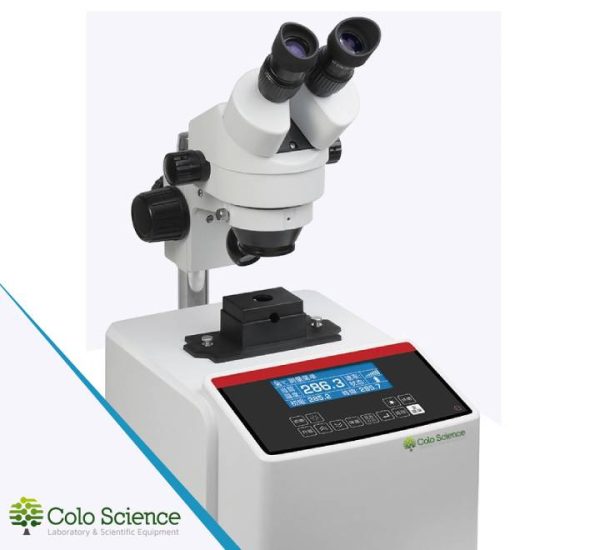

CMPA1 is a visual melting point apparatus from COLO.Science that combines precise temperature control with direct observation through a binocular microscope. Using classical capillary tubes and cover glasses, it allows the operator to monitor softening, meniscus formation and complete melting, while the digital controller provides stable ramp rates, accurate temperature display and convenient data output via USB and RS232.
COLO.SCIENCE KNOWLEDGE
Melting point determination in practice
Read our COLO.Science article covering melting point principles, pharmacopoeial standards and practical examples with visual and automatic instruments.
TYPICAL APPLICATIONS
- Identification and purity testing of organic crystalline compounds
- Quality control in pharmaceutical and fine chemicals production
- Development and comparison of APIs and intermediates
- Routine QC in chemical and materials laboratories
- Teaching of melting point principles in universities and colleges
- Characterisation of fragrances, flavours and specialty chemicals
MODELS & DIMENSIONS
| Model | Observation | Temperature range | Dimensions / weight |
|---|---|---|---|
| CMPA1 | Binocular microscope 40×–100× | Ambient +10 °C to 320 °C | 400 × 245 × 550 mm / approx. 8 kg |
TECHNICAL SPECIFICATIONS
| Model | CMPA1 Melting Point Apparatus with Microscope |
| Measurement principle | Classical capillary tube method with visual observation through binocular microscope |
| Observation | Binocular microscope, magnification 40×–100×; assistant observation via cover glass |
| Capillaries & sample preparation | Outer diameter 1.4 mm, inner diameter 1.0 mm, length 90 mm; fill height 3–5 mm; cover glass 18 × 18 × 0.17 mm |
| Number of capillaries | 1 capillary per measurement |
| Display & operation | 4.3″ LCD display with membrane keyboard; digital temperature indication and parameter setting |
| Interfaces | USB (data export) and RS232 (printer connection) |
| Ramp rates | Selectable 1 / 3 / 5 / 10 °C/min and fast heating mode |
| Heating / cooling time | Room temperature to maximum in ≤ 8 min; cooling from maximum back to room temperature in ≤ 8 min |
| Power supply | AC 110/220 V ±10%, 50/60 Hz, approx. 100 W |
STANDARD DELIVERY & ACCESSORIES
- CMPA1 melting point apparatus with binocular microscope
- Power cable
- Basic user manual / quick start guide
- Starter kit of capillary tubes and cover glasses*
- USB cable for data export*
- RS232 cable for external printer*
- Optional: external printer for hard-copy reports
- Optional: additional capillary tubes and consumables
*Exact contents as per current catalog and order confirmation.
MAIN TECHNICAL PARAMETERS
| Temperature range | Ambient +10 °C to 320 °C |
| Temperature resolution | 0.1 °C |
| Temperature accuracy | ±0.8 °C (< 200 °C); ±1.0 °C (≥ 200 °C) |
| Ramp rate error | ≤ 10 % |
| Reproducibility | ≤ 0.5 °C at 1 °C/min |
| Power supply | AC 110/220 V ±10 %, 50/60 Hz, 100 W |
| Dimensions (L × W × H) / weight | 400 × 245 × 550 mm / approx. 8 kg |
