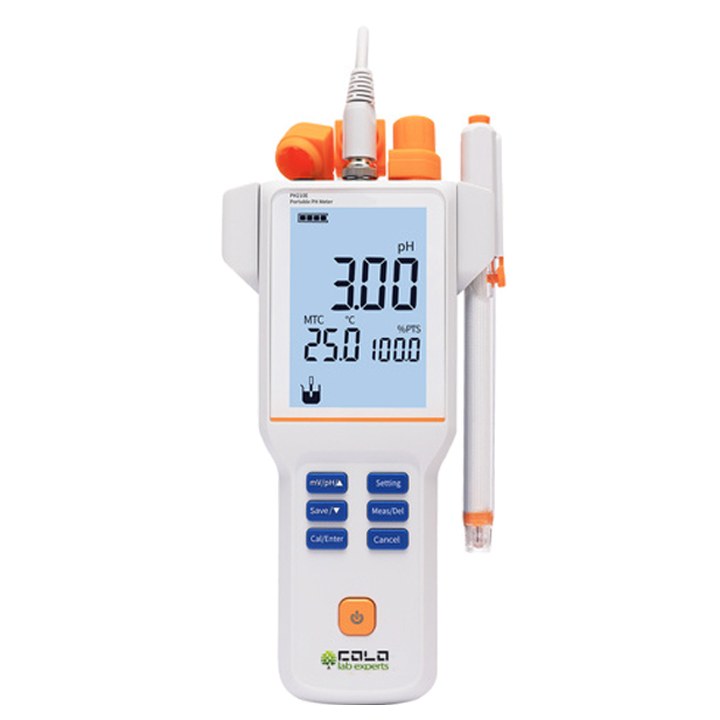

VIKING-PH210 Portable pH/mV Meter
Note: Supplied with a PRO4153 3-in-1 pH composite electrode, NIST buffers 4.01 / 7.00 / 10.01 (50 mL each), electrode holder, silicone rubber case, and wrist straps.
Highlights: 3.5″ backlit LCD, IP65 protection, 1–3 point NIST calibration, ATC/MTC, auto/continuous read with endpoint hold, auto power-off, rechargeable Li battery.
The VIKING-PH210 portable pH meter delivers fast, accurate measurements in the lab or in the field, featuring a 3.5″ LCD, IP65 protection, auto/continuous read modes, and up to 3-point calibration with NIST buffer recognition.
Key Features
- 3.5″ LCD display with backlight.
- Auto-read and continuous-read modes with endpoint hold.
- Automatic/Manual temperature compensation (ATC/MTC) for accurate results.
- Stores up to 200 results per parameter (GLP-friendly logging).
- Auto-power-off to extend battery life; factory reset option.
- IP65 waterproof design for field measurements.
- 1–3 point calibration with NIST buffer recognition.

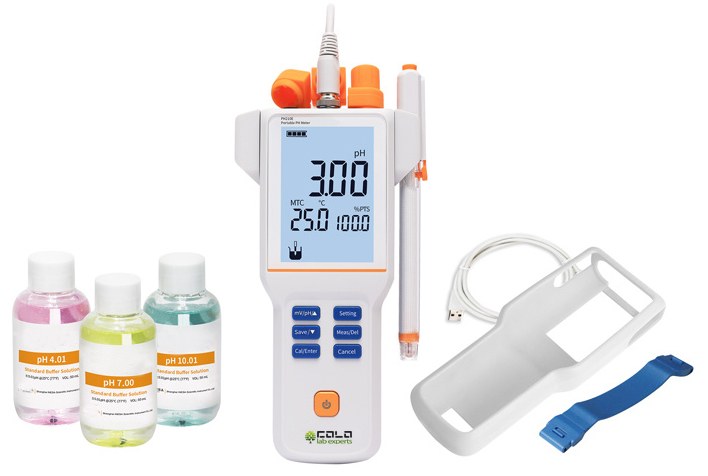

What’s in the Box
- (PRO4153) 3-in-1 pH composite electrode
- NIST pH buffer solutions (4.01, 7.00, 10.01), 50 mL/vial
- Electrode holder
- Silicone rubber case and wristbands
- Rechargeable Li battery & AC adapter
Technical Specifications
| Model | |
|---|---|
| Model | VIKING-PH210 |
| Parameters | |
| Measured parameters | pH / mV / Temp. |
| pH | |
| Range | −2.00 to 18.00 pH |
| Resolution | 0.01 pH |
| Accuracy | ±0.01 pH |
| Calibration points | Up to 3 |
| Auto standard recognition | NIST buffers |
| mV | |
| Range | −1999 to 1999 mV |
| Resolution | 1 mV |
| Accuracy | ±0.1% FS |
| Temperature | |
| Range | −5 to 110 °C |
| Resolution | 0.1 °C |
| Accuracy | ±0.2 °C |
| Measurement | |
| Reading modes | Auto Read, Continuous |
| Prompts | Reading, Stable, Locked |
| Temp. compensation | ATC, MTC |
| Data Management | |
| Data storage | 200 results each |
| Inputs | |
| pH electrode | BNC (Q9) |
| Temperature probe | 4-pin aviation connector |
| Display & Power | |
| Backlight | Yes |
| Auto shutdown | 300/600/1200/1800/3600 s; off |
| Power | Rechargeable Li battery; AC adapter 100–240 V AC in, DC 5 V out |
| Protection & Dimensions | |
| IP rating | IP65 |
| Dimensions (W×L×H) | 80 × 225 × 35 mm |
| Weight | 400 g (0.88 lb) |
Applications
Water quality, environmental monitoring, education, industrial process sampling, food & beverage QA/QC.
