COLO.Science · Technical SpecificationVIKING-PH600
Laboratory pH / mV / ORP Meter · Temperature · 4-channel modular · 7.0″ colour touchscreen · GLP / GMP
VIKING-PH600 Modular Touchscreen Laboratory pH Meter is a modular touchscreen benchtop meter supplied with a pH module for pH, mV, ORP and temperature. Its four measurement channels can later take pX, conductivity (EC-T / EC-F) or dissolved oxygen (DO-F / DO-P) modules, so 1–4 parameters are measured at once. It combines a 7.0″ colour touchscreen, buffer recognition (NIST, USA, MERCK, GB, DIN, GOST, JIS), three-level user management, GMP logs (FDA 21 CFR Part 11), CSV / PDF export and IP54 protection.
Modular pH meter4 channelspH / mV / ORPTemperature7.0″ colour touch±0.002 pHNIST · MERCK · GOST · JISGMP · 21 CFR Part 11USB / RS-232CSV / PDF export

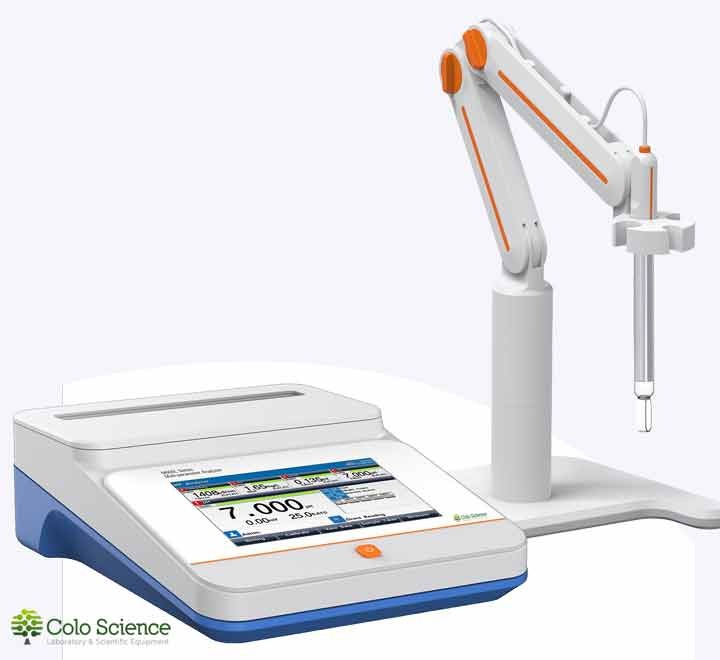

VIKING-PH600 · Modular Touchscreen Laboratory pH Meter
► Watch the operation video (9:45) · PC software: installation, calibration, measurement and data
Model / SKUVIKING-PH600
PRO6086
PRO6086
Address / HQPolje ob Sotli 4
SI-3255, Slovenia
SI-3255, Slovenia
Contactsales@colo.si
+386 70 713 437
+386 70 713 437
Page 1 / 5
VIKING-PH600 · Modular Touchscreen Laboratory pH MeterTechnical data sheet · Informational document · Controlled electronic document
Manufacturer contact: sales@colo.si · +386 70 713 437
Manufacturer contact: sales@colo.si · +386 70 713 437
VIKING-PH600 · technical specificationModular 4-channel touchscreen meter with pH module, expandable with pX, EC and DO modules
pH −2.000…20.000mV ±2000.00Temp. −10…135 °C4 channelspX · EC · DO modules— One benchtop platform that grows from pH to multi-parameter water analysis
📋 Product Overview
Application profile
Regulated QC and pharma: three-level users, GMP logs, forced calibration and standard checks.
Research and R&D: 0.001 pH resolution; add pX / ion module for ISE methods.
Water and environment: pH today, EC and DO modules on the same unit later.
Food and industry: pH, ORP and temperature of solutions, raw materials and products.
Design and handling advantage
Modular 4 channels: any combination of pH, pX, EC and DO modules; 1–4 parameters at once.
Colour touchscreen: 7.0″ high-contrast touch LCD, °C / °F, guided menus.
Calibration control: NIST / USA / MERCK / GB / DIN / GOST / JIS recognition, reminder, forced calibration and standard check.
Data and compliance: GMP log, CSV / PDF export, printer, PC, barcode scanner, autosampler.
Key features
pH: −2.000 to 20.000 pH, resolution 0.001 pH, accuracy ±0.002 pH.
mV / ORP: −2000.00 to 2000.00 mV, resolution 0.01 mV, accuracy ±0.03 % or ±0.1 mV.
Temperature: −10.0 to 135.0 °C / 14.0 to 275.0 °F, ±0.1 °C, ATC / MTC.
Calibration: 1–6 points, reminder, forced calibration, alarm limits.
Modules: pX, EC-T, EC-F, DO-F, DO-P — up to 4 channels.
Core technical summary
| Parameter | Specification |
|---|---|
| Model | VIKING-PH600 |
| SKU | PRO6086 |
| Instrument type | Modular touchscreen pH / mV / ORP meter |
| Channels | 4, modular (pH module installed) |
| Display | 7.0″ colour touchscreen |
| pH range | −2.000 to 20.000 pH |
| pH accuracy | ±0.002 pH |
| mV range | −2000.00 to 2000.00 mV |
| Temperature range | −10.0 to 135.0 °C / 14.0 to 275.0 °F |
| Outputs | USB, RS-232 |
pH accuracy±0.002 pH
Channels4 · modular
Calibration1–6 points
ComplianceGMP · 21 CFR 11
Technical values are provided for product selection. The delivered configuration, electrode type and accessory set are confirmed in the official COLO.Science quotation.
Page 2 / 5
📊 Technical Parameters
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| pH range | −2.000 to 20.000 pH | Channels | 4, modular: pH, pX, EC-T, EC-F, DO-F, DO-P |
| pH resolution | 0.001 pH | Reading modes | Auto, timed, continuous |
| pH accuracy | ±0.002 pH | Display | 7.0″ colour touchscreen |
| pH calibration | 1–6 points, reminder, forced | Data memory | 1000 results, 100 calibrations, 1000 checks |
| Buffer groups | NIST, USA, MERCK, GB, DIN, GOST, JIS | Management | 3-level users, methods, GMP log (21 CFR 11) |
| Custom buffers | Yes | Inputs | BNC (Q9) pH, 6-pin Mini-DIN temperature |
| Electrode diagnostics | Slope, offset, slope limit | Outputs | USB (PC, flash drive CSV / PDF), RS-232 (printer) |
| mV range | −2000.00 to 2000.00 mV | Peripherals | Barcode scanner, autosampler |
| mV resolution | 0.01 mV | Power supply | AC adapter 100–240 V, DC 20 V |
| mV accuracy | ±0.03 % or ±0.1 mV | Protection | IP54 |
| Temperature range | −10.0 to 135.0 °C / 14.0 to 275.0 °F | Operating conditions | 0–40 °C, RH ≤ 85 % |
| Temperature resolution | 0.1 °C / 0.1 °F | Dimensions | 240 × 310 × 98 mm |
| Temperature accuracy | ±0.1 °C | Weight | approx. 2.0 kg |
| Temperature compensation | ATC / MTC |
Specification notes
Electrode selection: match the electrode to the sample matrix, pH range and temperature — see page 4.
Modules: pX, EC and DO modules are added to free channels; each module has its own electrode — confirmed in the quotation.
Documentation: results, calibrations and GMP logs export to a USB flash drive as CSV / PDF, to a PC or to a printer.
Page 3 / 5
🧪 Electrodes and Accessories
PRO6139
pH composite electrode E-201-L
Ag/AgCl reference, Φ12×120 mm, BNC (Q9) connector.
Standard delivery
PRO6170
Temperature probe T-818-L
316 stainless steel, Φ4×120 mm, −5…105 °C; 6-pin Mini-DIN for ATC.
Standard delivery
PRO6122
pH buffer set 4.01 / 7.00 / 10.01
Standard pH buffer solutions, 50 mL each, for 3-point calibration.
Standard delivery
COLO-3
Electrode stand COLO-3
Articulated electrode arm on a stable base; holds electrode and temperature probe.
Standard delivery
PRO6137
pH electrode E-201-Z, spear tip
Piercing tip for semi-solid samples; Ag/AgCl, Φ12×120 mm, BNC (Q9) — connects directly.
Optional
PRO6144
pH electrode, blade spear (knife)
Knife-shaped POM / 316 stainless steel body for cheese, meat and fruit; S7 head, connected by cable.
Optional
PRO6138
pH electrode E-201-P, flat surface
Flat sensing membrane for surface pH on paper, leather, agar and skin; BNC (Q9) — connects directly.
Optional
PRO6146
pH electrode, slender
Thin Φ6×100 mm shaft for small vessels and test tubes; S7 head, connected by cable.
OptionalMore electrodes and accessories
| SKU | Item | Use | Status |
|---|---|---|---|
| — | Measurement modules pX, EC-T, EC-F, DO-F, DO-P | Extension to 4 channels | Optional |
| PRO6147 | pH electrode, long | Deep vessels and bottles | Optional |
| PRO6171 | ORP electrode 501, BNC (Q9) | ORP / redox measurement | Optional |
| PRO6126 | 3 M KCl electrolyte, 250 mL | Electrode maintenance | Optional |
| PRO6998 | Thermal printer 771000 | Documentation / GLP | Optional |
The standard pH electrode E-201-L (PRO6139) connects to the BNC (Q9) input and the temperature probe T-818-L (PRO6170) to the 6-pin Mini-DIN input for ATC; pH buffers, the electrode stand COLO-3 and a touch pen are included. pX, EC and DO modules with their electrodes are ordered separately. Standard delivery is confirmed in the quotation.
Page 4 / 5
🖼️ Visuals, Configuration Guidance and Support
Ordering information
| Item | Value |
|---|---|
| Model | VIKING-PH600 |
| SKU | PRO6086 |
| Instrument type | Modular touchscreen pH / mV / ORP meter |
| Standard electrode | E-201-L (PRO6139) + temp. probe T-818-L (PRO6170) |
| Calibration standards | pH 4.01 / 7.00 / 10.01, 50 mL |
| Also included | stand COLO-3, touch pen, adapter |
| Options | pX, EC, DO modules; printer |
Configuration checklist
Sample type: water, wastewater, solutions, hot or semi-solid samples.
Electrode: standard, spear, flat, slender or long — see page 4.
Future parameters: pX / ion, conductivity or dissolved oxygen modules.
Compliance: user roles, GMP log, printer, scanner or autosampler.
Accuracy: ±0.002 pH — for a single-channel unit compare VIKING-PH500T.
Manufacturer and support
COLO Lab Experts
Polje ob Sotli 4, SI-3255, Slovenia
Selection guidance: VIKING-PH600 is selected when a laboratory needs ±0.002 pH accuracy on a touchscreen platform that can later add pX, EC or DO channels. COLO.Science helps you choose electrodes, modules, buffers and printer.
