COLO.Science · Technical Specification
ORSHA344 / ORSSHA344 Series
Orbital Shaker · Single / Double Layer Platform · 60–280 rpm · 25 mm Amplitude
ORSHA344 / ORSSHA344 Series orbital shakers are laboratory shaking platforms designed for controlled
orbital motion, Erlenmeyer flask cultivation, mixing, incubation workflows and routine laboratory sample preparation.
The series includes single-layer and double-layer configurations, with model capacities from 2500 ml
up to 20000 ml. A large-screen LCD interface, PID control, multi-stage program operation,
UV sterilization function and DC brushless motor feedback control support stable and repeatable laboratory operation.
Orbital motion
60–280 rpm
±1 rpm accuracy
25 mm amplitude
LCD / PID
UV sterilization
Single / double layer
AC220V 50/60Hz
ORSHA344 · orbital shaker · single-layer platform configuration

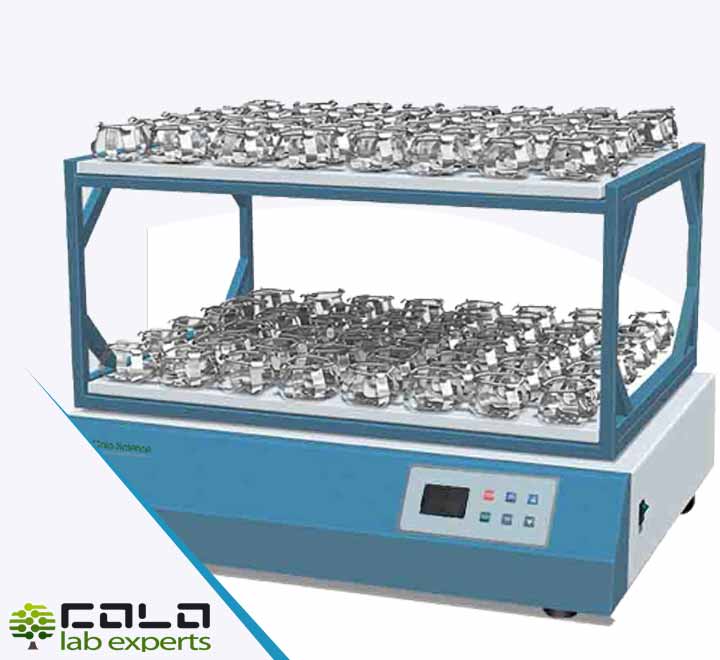

ORSHA344 · orbital shaker · double-layer platform configuration
Series
ORSHA344
ORSSHA344
ORSSHA344
Address / HQ
Polje ob Sotli 4
SI-3255, Slovenia
SI-3255, Slovenia
Contact
sales@colo.si
+386 64 222 724
+386 64 222 724
Page 1 / 4
ORSHA344 / ORSSHA344 Series · Orbital Shaker
Technical data sheet · Informational document · Controlled electronic document
Manufacturer contact: sales@colo.si · +386 64 222 724
Manufacturer contact: sales@colo.si · +386 64 222 724
ORSHA344 / ORSSHA344 Series · technical specification
Orbital shaker family with single-layer and double-layer platform configurations
LCD screen
PID control
60–280 rpm
25 mm amplitude
0–999.9 h timer
UV sterilization
— Controlled orbital shaking platform for Erlenmeyer flask workflows and routine laboratory shaking applications
📋 General Technical Specifications
Control and motion system
| Parameter | Specification |
|---|---|
| Product family | ORSHA344 / ORSSHA344 orbital shaker series |
| Controller | Large-screen LCD display, PID control |
| Motion type | Orbital |
| Frequency / speed | 60 to 280 rpm |
| Speed accuracy | ±1 rpm |
| Amplitude | 25 mm |
| Timer | 0 to 999.9 h |
| Power | AC220V 50/60Hz |
Program and operation
| Function | Description |
|---|---|
| Display information | Continuous, accurate, real-time display of temperature, speed and working time |
| Interface | Menu-style operation interface for easier parameter setting |
| Multi-stage operation | Multiple speed, temperature and time modes can be configured in one program |
| Automatic switching | The system can automatically switch operating modes during the programmed run |
Safety, sterilization and motor control
| Function | Description |
|---|---|
| UV sterilization | Standard UV sterilization function |
| Air circulation | Unique air duct breeze circulation inside the working chamber |
| Temperature uniformity | Designed to support good temperature uniformity inside the studio / chamber |
| Temperature limit alarm | Independent temperature limit alarm system |
| Over-temperature protection | Automatic heating cut-off after exceeding the limit temperature |
| Motor control | DC brushless motor with intelligent feedback control |
| Slow start design | Adjustable start speed helps prevent liquid splashing in shake flasks |
| Speed safety | Automatic locking after speed control abnormality / out-of-control condition |
Speed range60–280 rpm
Accuracy±1 rpm
Amplitude25 mm
Timer0–999.9 h
⚙️ Functional Advantages
Stable programmed operation: multi-stage speed, temperature and time control allows different experimental phases to be prepared in advance.
Improved sample protection: slow start and adjustable starting speed help reduce liquid splashing in Erlenmeyer flasks during start-up.
Safety-focused operation: independent temperature limit alarm and heating cut-off support safer unattended or long-duration operation.
Laboratory usability: large-screen LCD display and menu-style interface simplify daily use and reduce operator error.
This document is prepared from the supplied product images, functional description and model comparison data. Final configuration, platform accessories and usable flask height should be confirmed before quotation.
Page 2 / 4
📊 Model Comparison · ORSSHA344 Series
| Parameter | ORSSHA344-25 | ORSSHA344-45 | ORSSHA344-60 | ORSSHA344-150 | ORSSHA344-180 | ORSSHA344-200 |
|---|---|---|---|---|---|---|
| ORSSHA344-25S | ORSSHA344-45S | ORSSHA344-60S | ORSSHA344-150S | ORSSHA344-180S | ORSSHA344-200S | |
| Max capacity | 2500 ml | 4500 ml | 6000 ml | 15000 ml | 18000 ml | 20000 ml |
| Controller | LCD screen, PID control | |||||
| Motion type | Orbital | |||||
| Frequency / speed | 60 to 280 rpm | |||||
| Speed accuracy | ±1 rpm | |||||
| Amplitude | 25 mm | |||||
| Timer | 0 to 999.9 h | |||||
| Standard capacity | 2000 ml × 1 | 2000 ml × 2 | 2000 ml × 3 | 2000 ml × 7 | 2000 ml × 9 | 2000 ml × 10 |
| 1000 ml × 2 | 1000 ml × 4 | 1000 ml × 6 | 1000 ml × 15 | 1000 ml × 18 | 1000 ml × 20 | |
| 500 ml × 5 | 500 ml × 9 | 500 ml × 12 | 500 ml × 24 | 500 ml × 28 | 500 ml × 30 | |
| 250 ml × 12 | 250 ml × 16 | 250 ml × 20 | 250 ml × 40 | 250 ml × 45 | 250 ml × 48 | |
| 150 ml × 16 | 150 ml × 25 | 150 ml × 30 | 150 ml × 54 | 150 ml × 60 | 150 ml × 63 | |
| Platform size | 300 × 350 mm | 380 × 380 mm | 450 × 400 mm | 730 × 490 mm | 800 × 490 mm | 750 × 560 mm |
| Platform number | 1 | 1 | 1 | 1 | 1 | 1 |
| 2 | 2 | 2 | 2 | 2 | 2 | |
| Product size | 350 × 400 × 350 mm | 400 × 450 × 350 mm | 500 × 520 × 350 mm | 780 × 570 × 450 mm | 850 × 570 × 450 mm | 800 × 650 × 450 mm |
| Power | AC220V 50/60Hz | |||||
Single-layer and double-layer selection
Standard model designation: ORSSHA344-25, -45, -60, -150, -180 and -200 indicate the main model capacity class.
S model designation: ORSSHA344-25S, -45S, -60S, -150S, -180S and -200S are used for the corresponding S / double-layer configuration.
Platform number: the table includes both 1-platform and 2-platform configurations for the same capacity family.
2000 ml Erlenmeyer flask reference
Application-oriented reference: 2000 ml flask positions are added as practical capacity guidance.
Example: where the platform supports 15 × 1000 ml flasks, the comparable 2000 ml configuration may be approximately 7 × 2000 ml.
Final confirmation: flask geometry, clamps, platform configuration and available working height must be verified before final quotation.
Capacity values are prepared according to the supplied model table. The 2000 ml Erlenmeyer flask line is included as an application-oriented configuration reference and should be checked against final platform accessory configuration.
Page 3 / 4
🖼️ Visuals, Platform Accessories and Support

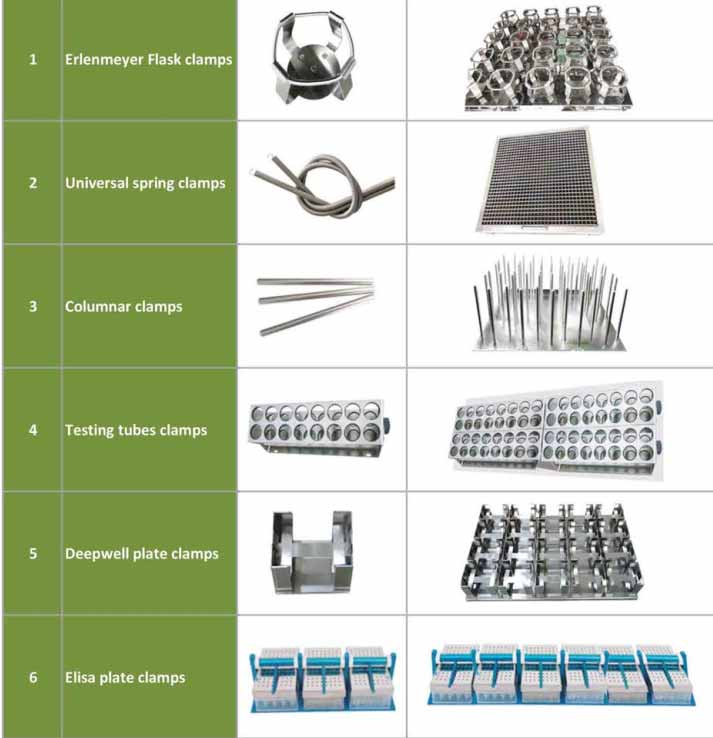

Platform accessory note
Flask clamp configuration: final capacity depends on selected clamps, flask diameter and platform layout.
Working height: double-layer operation and large 2000 ml Erlenmeyer flasks require confirmation of available working height.
Quotation requirement: specify flask volume, number of flasks, single-layer or double-layer setup and expected shaking speed range.
Manufacturer and support
COLO Lab Experts
Polje ob Sotli 4, SI-3255, Slovenia
Selection guidance: ORSHA344 / ORSSHA344 Series orbital shakers should be selected according to required
flask volume, total shaking load, platform size, single-layer or double-layer configuration, temperature control requirements,
sterilization workflow and laboratory space limitations.
Quick contact
COLO.Science · Orbital shaker configuration support
Request a quotation or confirm the platform configuration
Send us the required flask volume, number of flasks per run, preferred single-layer or double-layer configuration, working speed range, temperature requirements and whether UV sterilization is required in the workflow.
Specification disclaimer:
The information in this document is prepared from the supplied ORSHA344 / ORSSHA344 product data, product images and model comparison table. Final values, accessory compatibility, flask clamp layout, platform number and working height should be verified before official publication, quotation issue or catalogue printing.
The information in this document is prepared from the supplied ORSHA344 / ORSSHA344 product data, product images and model comparison table. Final values, accessory compatibility, flask clamp layout, platform number and working height should be verified before official publication, quotation issue or catalogue printing.
Page 4 / 4
