COLO.Science · Technical Specification
LHDM900 Series
Laboratory High-Speed Shearing Dispersing Emulsifier · Analog & Digital Models
The LHDM900 series (A / D) high shear homogenizer is driven by a compact series-excited miniature high-speed motor. It is suitable for mixing low to medium-high viscosity liquids, particle size reduction, emulsification, and dispersion in laboratory or pilot plant environments. The system integrates a high-density die-cast aluminum body, refined stainless steel working head, and precise speed regulation – available in analog stepless (LHDM900A) or digital touch-screen (LHDM900D) control.
High Shear Homogenizer
200–11000 rpm
Max 40 L capacity
Rotor-Stator Technology
Interchangeable Stator
300W output
A: analog | D: digital

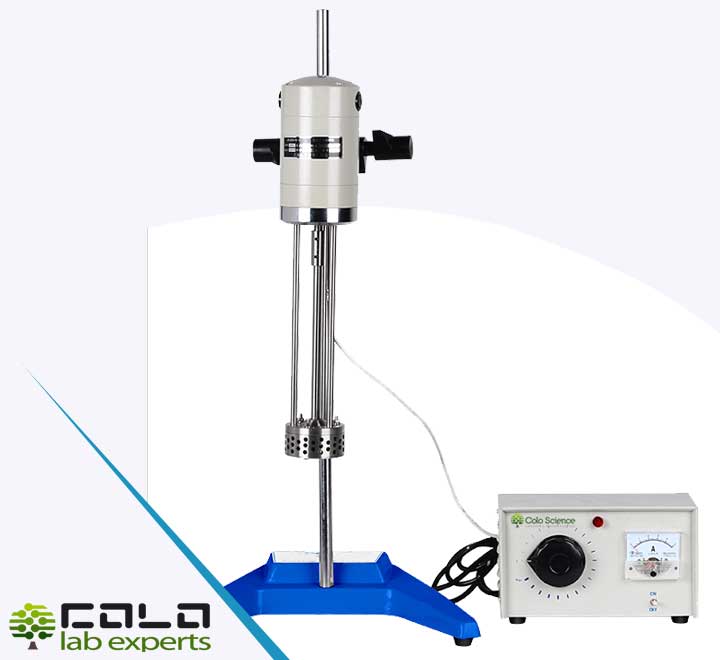

LHDM900A · Analog stepless speed controller
LHDM900D · Digital touch control display
Models
LHDM900A / LHDM900D
Address (HQ)
Polje ob Sotli 4
SI-3255, Slovenia
SI-3255, Slovenia
Contact
sales@colo.si
+386 70 713 437
+386 70 713 437
Page 1 / 5
LHDM900 · High Shear Homogenizer
Document ID: COL-TEC-LHDM900-EN
Version: Print Edition · V2.1
Technical datasheet · Non-binding · Controlled document
Version: Print Edition · V2.1
Technical datasheet · Non-binding · Controlled document
LHDM900A / LHDM900D · technical specificationhigh speed shearing dispersing emulsifier
Series-excited motor
Stainless steel working head
Shaft-coupling drive
Up to 11000 rpm
Torque 34.1 N·cm
— Ideal for emulsions, suspensions, cell disruption & nano-dispersion
📊 Comparative specifications · LHDM900A (analog) & LHDM900D (digital)
| Parameter | LHDM900A (analog) | LHDM900D (digital) |
|---|---|---|
| Speed range | 200 – 11000 rpm (stepless regulator) | 200 – 11000 rpm (digital touch control) |
| Max. stirring capacity (H₂O) | 40 L | |
| Input / Output power | 300 W / 300 W | |
| Rated torque | 34.1 N·cm | |
| Working head diameter | Φ70 mm (stainless steel, rotor-stator) | |
| Stator configuration (interchangeable) | 3 pcs standard: 5 mm², 20 mm², 50 mm² slot / hole pattern | |
| Speed regulation type | Analog potentiometer (stepless) | Digital touch panel, RPM display, stepless |
| Display / interface | No digital display | LCD digital readout, touch structure, precise data |
| Housing material | High-density die-cast aluminum alloy | |
| Working head material | High-quality stainless steel (corrosion resistant) | |
| Motor type | Series-excited miniature high-speed motor, compact & safe | |
| Connection | Shaft joint for stable high-speed running | |
| External dimensions (L×W×H) | 315 × 200 × 780 mm | |
| Net weight | 17.5 kg | 12.5 kg |
| Packing dimensions (mm) | 840 × 305 × 210 | 585 × 335 × 180 |
| Power supply | AC 220 V / 50 Hz (other voltages on request) | |
| Protection / duty | Continuous operation with thermal overload protection (internal) | |
* Both models include interchangeable stator set, stand clamp, wrench, and operating manual. Stator configurations allow different shear intensities for particle size reduction and emulsification.
Page 2 / 5
⚙️ High shear working principle & key features
Rotor-stator homogenizing principle
Mechanical shear: High-speed rotor draws liquid/particles into the precision stator, generating intense hydraulic shear, turbulence, and cavitation.
Emulsification & dispersion: Effective reduction of droplet/particle size down to submicron range for stable emulsions and suspensions.
Continuous process: Recirculation or batch operation ensures uniform mixing and homogenization in the vessel.
Interchangeable stators: Three different stator screens (5/20/50 mm²) tailor shear intensity for low to high viscosity applications.
Superior drive & safety design
Series-excited micro motor: High output power in compact structure, safe and reliable for continuous lab use.
Die-cast aluminum housing: Excellent heat dissipation, mechanical rigidity, and reduced operational vibration.
Shaft joint coupling: Direct connection ensures concentricity and stability even at max 11,000 rpm.
Digital vs analog control: LHDM900D features touch digital interface with precise RPM readout; LHDM900A offers classic stepless regulator.
Materials & laboratory suitability
Wetted parts: High-grade stainless steel (SS304/SS316L equivalent) – excellent corrosion resistance against acids, alkalis, and solvents.
Viscosity range: Suitable for low, medium, and high viscosity liquids (e.g., creams, pastes, pigments, polymer solutions).
Pilot/Lab scale: Ideal for R&D, QC labs, small-batch production, and scale-up studies.
Feature comparison: analog vs digital experience
| LHDM900A | Stepless speed knob, robust analog electronics, no digital display, ideal for traditional labs and budget-friendly workflows. |
| LHDM900D | Digital touch controller, real-time rpm display, enhanced repeatability, user-friendly data monitoring and parameter memory. |
🧪 Typical applications
- Emulsion preparation (o/w, w/o)
- Nanoparticle dispersion
- Cell disruption & homogenization
- Pigment & coating mixing
- Pharmaceutical creams & ointments
- Food emulsions (mayonnaise, sauces)
- Chemical & polymer processing
- Cosmetic lotions & gels
Page 3 / 5
🔄 Stator configurations, working head & technical drawings (visual)
Standard accessory stator screens (3 types)
| Stator code | Hole / slot size | Shear intensity | Typical application |
|---|---|---|---|
| S-5 | 5 mm² openings | Highest shear / fine emulsion | Nano-dispersion, cell lysis |
| S-20 | 20 mm² openings | Medium-high shear | General emulsification, suspensions |
| S-50 | 50 mm² openings | Low shear / circulation | High viscosity mixing, powder incorporation |
Technical notes & performance
Working head diameter: Φ70 mm, fully detachable for cleaning/autoclaving.
Max permissible temperature: Up to 180 °C (depending on seal material).
Speed stability: Electronic feedback ensures consistent torque across speed range.
Mounting: Heavy-duty stainless steel support stand and clamp included for safe operation.
Max capacity40 L (water)
Rotor speed200 – 11000 rpm
Power rating300W (input/output)
Torque34.1 N·cm
* Stator configuration, vessel shape, and sample viscosity affect final homogenization result. For high-viscosity samples (≥5000 cP), lower volume (≤10 L) is recommended.
Page 4 / 5
📦 Ordering information & standard delivery scope
| Model | Order code | Control type |
|---|---|---|
| LHDM900A | LHDM-900A | Analog stepless regulator |
| LHDM900D | LHDM-900D | Digital touch display + RPM |
Standard accessories (included)
- Φ70 mm stainless steel rotor-stator assembly
- 3 interchangeable stator heads (5 / 20 / 50 mm²)
- Heavy-duty support stand + clamp
- Wrench set for stator exchange
- Operation manual & calibration certificate
Optional accessories & upgrades
- Additional stator sets (fine / coarse mesh)
- Flow chamber for inline recirculation
- Temperature probe adapter (for D model)
- Replacement shaft seal kit
- Diverse mounting brackets for custom vessels
Manufacturer & support
COLO.Science d.o.o.
Polje ob Sotli 4, SI-3255, Slovenia
Configuration advice: specify required sample volume, viscosity range, and desired stator pattern for optimized recommendation. LHDM900D recommended for laboratories requiring digital repeatability and data traceability.
Quick contact
COLO.Science · high shear homogenizer support
Request a quote or application consultation
Tell us about your dispersion task: viscosity, batch volume, target particle size, and preferred model (analog/digital). Our technical sales team will respond with detailed configuration and pricing.
Manufacturer & binding specification notice:
The information contained in this document reflects typical product parameters based on the LHDM900 series. COLO.Science reserves the right to improve design and specifications without prior notice. For tender, procurement, and quality assurance, the only valid technical specification is the official COLO quotation accompanied by engineering-approved datasheet.
LHDM900A/LHDM900D are designed for laboratory and pilot applications. Always follow safety instructions, use appropriate grounding, and wear PPE during operation.
The information contained in this document reflects typical product parameters based on the LHDM900 series. COLO.Science reserves the right to improve design and specifications without prior notice. For tender, procurement, and quality assurance, the only valid technical specification is the official COLO quotation accompanied by engineering-approved datasheet.
LHDM900A/LHDM900D are designed for laboratory and pilot applications. Always follow safety instructions, use appropriate grounding, and wear PPE during operation.
Page 5 / 5
