COLO.Science · Technical Specification
RITACUBA16R
High-Speed Refrigerated Centrifuge · 16,500 rpm · 24,148 × g
The RITACUBA16R is a compact benchtop refrigerated centrifuge designed for molecular biology,
molecular chemistry, PCR laboratories, and routine bacterial separation workflows. It supports multiple fixed-angle
rotor options, combines high-speed performance with temperature control, and helps laboratories work with small-volume
tubes, conical tubes, round-bottom tubes, and 50 ml formats in one platform.
16500 rpm
24148 × g
Refrigerated
5-inch touch screen
99 programs
Rotor auto-ID
10 accel / decel
Compact desktop
RITACUBA16R · high-speed refrigerated centrifuge · compact benchtop format
Representative compatible rotor · PRO6934 · 6 × 50 ml format
Model
RITACUBA16R
Address (HQ)
Polje ob Sotli 4
SI-3255, Slovenia
SI-3255, Slovenia
Contact
sales@colo.si
+386 64 222 724
+386 64 222 724
Page 1 / 4
RITACUBA16R · Refrigerated Centrifuge
Technical datasheet · Non-binding · Controlled document
Manufacturer contact: sales@colo.si · +386 64 222 724
Manufacturer contact: sales@colo.si · +386 64 222 724
RITACUBA16R · technical specification
Desktop refrigerated centrifuge · up to 16,500 rpm · up to 24,148 × g
Max speed 16500 rpm
Max RCF 24148 × g
6 × 50 ml max capacity
R134a refrigerant
99 user programs
— For PCR, molecular biology, molecular chemistry, bacterial separation and routine refrigerated centrifugation
📋 Technical specifications · RITACUBA16R
Performance
| Parameter | Specification |
|---|---|
| Max speed | 16,500 rpm |
| Max RCF | 24,148 × g |
| Max capacity | 6 × 50 ml |
| Standard rotor capacity | 36 × 1.5 / 2 ml |
| Acceleration levels | 10 |
| Deceleration levels | 10 |
| Stored programs | 99 user-defined programs |
| Timed startup | Supported |
| Instant centrifugation | Supported |
Cooling system
| Parameter | Specification |
|---|---|
| Refrigerant | R134a |
| Cooling chamber | Stainless steel bowl |
| Temperature stability | Can remain stabilized at 4 °C at highest speed |
| Rapid pre-cooling | Approx. 25 °C to 4 °C within 6 minutes |
| Temperature logic | Intelligent control adjusts cooling according to lid open / closed state |
Control & display
| Parameter | Specification |
|---|---|
| Display | 5-inch touch screen |
| Speed accuracy | 1 rpm |
| RCF accuracy | 1 × g |
| Time accuracy | 1 second |
| Live parameters shown | Speed, RCF, time, temperature, acceleration, deceleration and other parameters |
| Parameter change during run | Yes, without stopping |
Construction & safety
| Parameter | Specification |
|---|---|
| Structure | Desktop |
| Body material | High-strength steel |
| Rotor material | NCP composite material |
| Rotor recognition | Automatic rotor identification |
| Damping / balance | 3-level rubber damping with automatic balance and imbalance switch function |
| Emergency lid release | Supported in unexpected power failure |
| Noise | 54 dB(A) |
| Certification | CE, ISO |
📐 Dimensions & general data
| Parameter | Specification |
|---|---|
| Model | RITACUBA16R |
| Product number | PRO6933 |
| Dimensions (W × D × H) | 620 × 330 × 270 mm |
| Single package | 730 × 450 × 440 mm |
| Net weight | 48 kg |
| Parameter | Specification |
|---|---|
| Application fields | Industry, school, hospital, laboratory, institute |
| Surface finish | Fine grain coating process |
| Executive standard | ISO9001 |
| Transport package | Cartons and wooden pallets |
| HS code | 84211900 |
Max speed16,500 rpm
Max RCF24,148 × g
Max capacity6 × 50 ml
Programs99 user-defined
* This document consolidates the main centrifuge data together with the compatible rotor and adapter matrix supplied with the product sheet.
Page 2 / 4
⚙️ Technology & key features
Rotor platform
NCP composite rotor technology: ultralight construction, high strength, slower heat conduction and strong corrosion resistance.
Fast lifting and lowering: lightweight rotor head helps improve handling during rotor changes.
Quick cover opening: the fixed-angle rotor cover opens with approximately one turn.
Expected service life: NCP material is presented as corrosion-resistant with improved environmental stability and service life up to 8–10 years.
Safety & workflow support
Automatic rotor identification: helps reduce risk from selecting an incorrect rotor.
Imbalance protection: 3-level rubber damping supports automatic balance and imbalance switch function.
Emergency lid opening: lid can be opened in unexpected power failure situations.
Soft start / stop logic: 10-stage acceleration and 10-stage deceleration help avoid secondary mixing during braking.
Temperature & control logic
Rapid pre-cooling: can reduce from 25 °C to 4 °C within about 6 minutes.
High-speed cooling performance: 4 °C can still be maintained at maximum speed according to the supplied product sheet.
Real-time adjustment: parameters can be changed during operation without stopping the run.
Touch interface: 5-inch screen simplifies program recall, timing and parameter editing.
Rotor overview · representative visuals

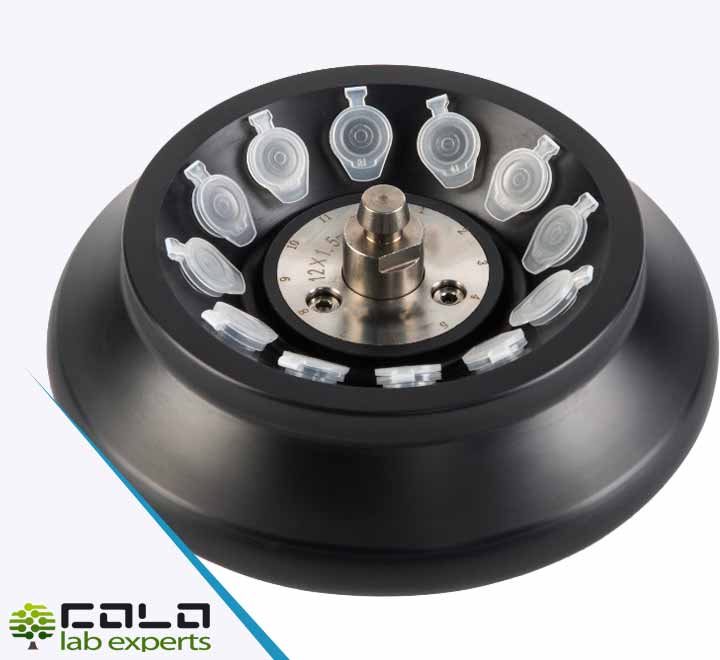

PRO3885
12 × 1.5 / 2 ml microtube rotor

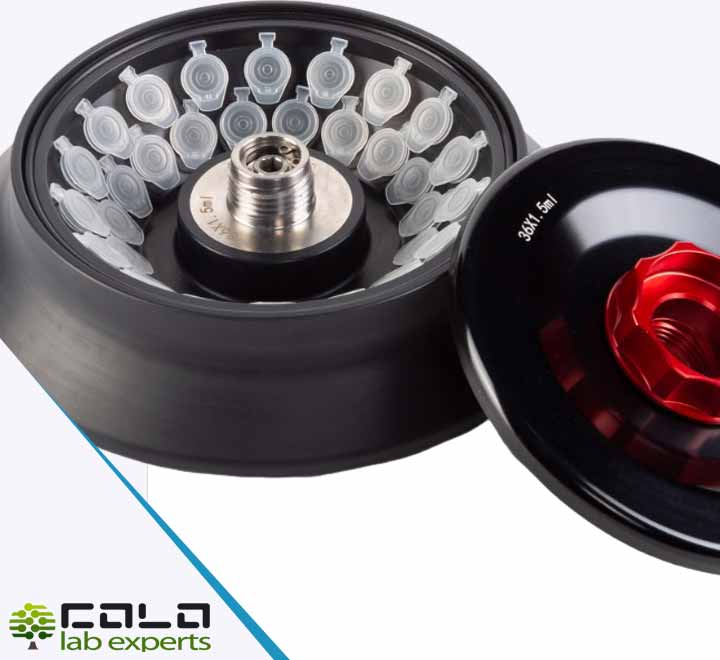

PRO6936
36 × 1.5 / 2 ml higher-throughput microtube rotor

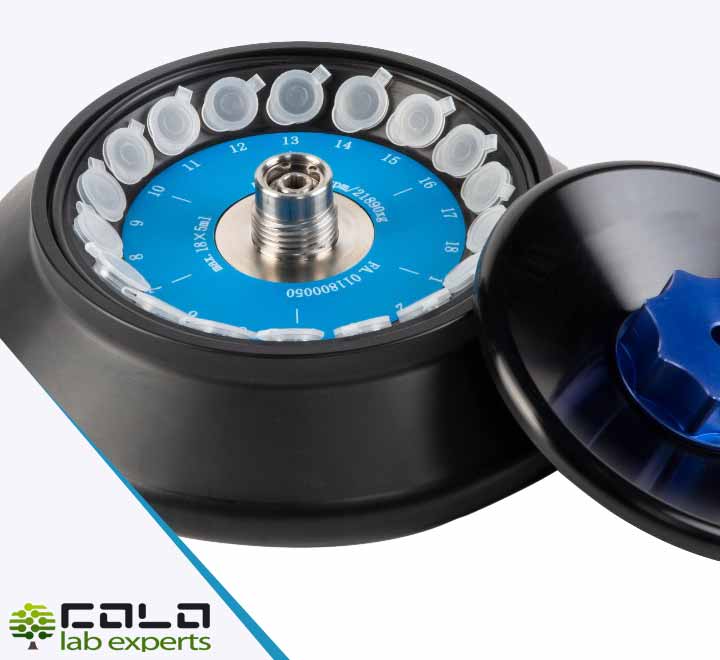

PRO6938
18 × 5 ml round-bottom tube rotor

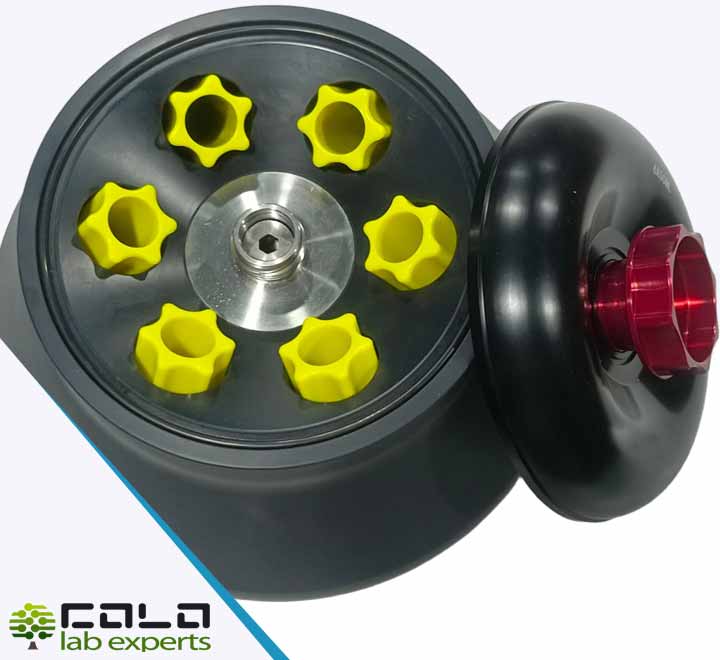

PRO6934
6 × 50 ml tube rotor
Typical applications
Molecular biology: refrigerated processing of common tube formats used in nucleic acid and protein workflows.
PCR laboratories: fast startup, stored methods and compact benchtop footprint support routine repeated runs.
Molecular chemistry: controlled-speed and controlled-temperature separation of small laboratory batches.
Bacterial separation: described as a routine use case for the platform.
Representative rotor visuals are already inserted for selected compatible configurations. Additional rotor or adapter images can be added later without changing the page structure.
Page 3 / 4
🔄 Compatible rotors & adapters
Rotor matrix
| Rotor No. | Capacity (ml) | Max Speed (rpm) | Max RCF (×g) | Angle | Order Number |
|---|---|---|---|---|---|
| PRO3885 | 12 × 1.5 / 2 | 16500 | 21610 | 45° | Hn011200020 |
| PRO6935 | 24 × 1.5 / 2 | 15000 | 22387 | 45° | HNN012400020 |
| PRO6936 | 36 × 1.5 / 2 | 15000 | 22262 | 45° | HNN013600020 |

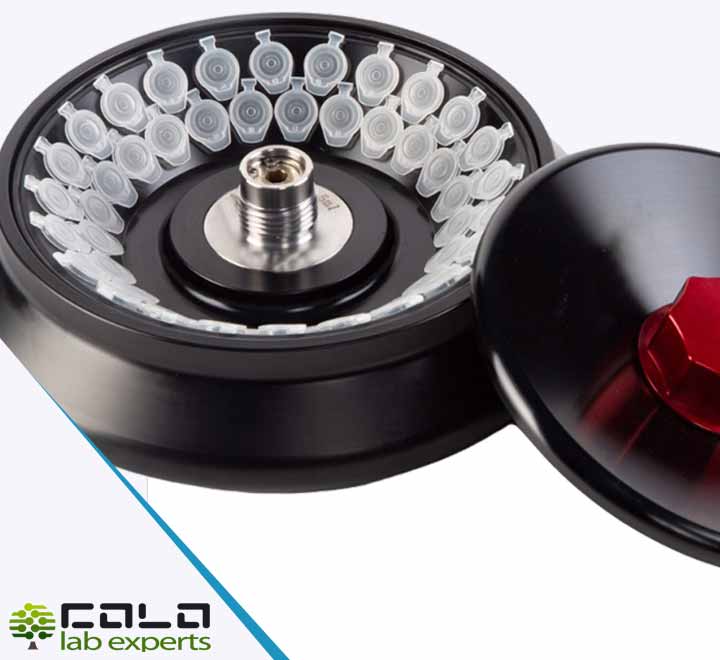

| PRO6937 | 48 × 1.5 / 2 | 12000 | 16260 | 45° | HNN014800020 |
| PRO6938 | 18 × 5 (round bottom) | 15000 | 24148 | 45° | HNN011800050 |
| PRO6939 | 12 × 10 (round bottom) | 13000 | 20500 | 45° | HNN011200100 |
| PRO6940 | 12 × 15 (conical bottom) | 11000 | 15620 | 30° | HNN011200150 |
| PRO6934 | 6 × 50 (sharp / round bottom) | 11000 | 14400 | 30° | HNN010600500 |
Adapters
| Adapter No. | Capacity (ml) | Max Speed (rpm) | Max RCF (×g) | Angle | Order Number |
|---|---|---|---|---|---|
| PRO6941 | 12 × 5 (round bottom) | 11000 | 15620 | — | B011200150 |
| PRO3189 | 6 × 15 (conical bottom) | 11000 | 14400 | — | B6005006015 |
| PRO6942 | 6 × 10 (round bottom) | 11000 | 14400 | — | B6005006010 |
Ordering information
| Item | Value |
|---|---|
| Model | RITACUBA16R |
| Product number | PRO6933 |
| Product type | High-speed refrigerated centrifuge |
| Main selling point | Compact refrigerated platform with broad tube-format compatibility |
Manufacturer & support
COLO Lab Experts
Polje ob Sotli 4, SI-3255, Slovenia
Selection note: RITACUBA16R is suitable where laboratories need refrigerated high-speed centrifugation,
multiple rotor options, method storage, and a compact bench footprint. Rotor selection should always be aligned with
sample format, maximum speed and balancing requirements.
Quick contact
COLO.Science · centrifugation support
Request a quote or rotor configuration guidance
Tell us your sample volume range, preferred tube format, required throughput, cooling requirement and target relative centrifugal force. We can help match the correct rotor configuration for microtubes, conical tubes, round-bottom tubes or 50 ml applications.
Binding specification notice:
The information in this document reflects the supplied RITACUBA16R product sheet and compatible rotor matrix. The manufacturer may improve design and specifications without prior notice. For procurement and QA, the binding version should be the official quotation and the final engineering-approved datasheet issued at the time of sale.
The information in this document reflects the supplied RITACUBA16R product sheet and compatible rotor matrix. The manufacturer may improve design and specifications without prior notice. For procurement and QA, the binding version should be the official quotation and the final engineering-approved datasheet issued at the time of sale.
Page 4 / 4
